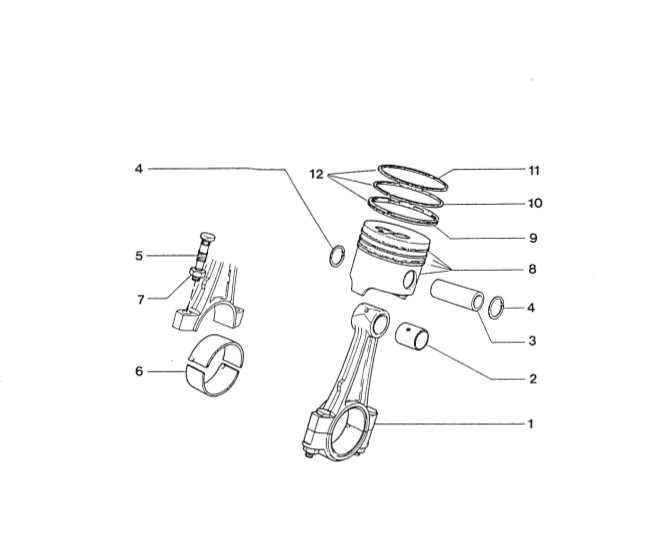

Rod, Pistons, Springs Vetus P4.17
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM6437 | Rod | ||
| 2 | 4 | STM6438 | Bush | ||
| 3 | 4 | STM6417 | Piston pin | ||
| 4 | 8 | STM6418 | Circlip | ||
| 5 | 8 | STM6419 | Bolt | ||
| 6 | 4 | STM6420 | Bearing shell @ 50 | ||
| 6 | 4 | STM6421 | Bearing shell + 0.30 | ||
| 7 | 8 | STM6444 | Nut | ||
| 8 | 4 | STM6445 | Piston o& 79.930 + 0.009 (Standart) | ||
| 8 | 4 | STM6450 | Piston o 80.130 + 0,009 (1st repair) | ||
| 8 | 4 | STM6455 | Piston © 80.430 + 0,009 (2nd repair) | ||
| 8 | 4 | STM6460 | Piston © 80.730 + 0,008 (3nd repair) | ||
| 9 | 4 | STM6446 | Scraper ring (Standart) | ||
| 9 | 4 | STM6451 | Scraper ring (1st repair) | ||
| 9 | 4 | STM6456 | Scraper ring (2nd repair) | ||
| 9 | 4 | STM6461 | Scraper ring (3nd repair) | ||
| 10 | 4 | STM6447 | Compression ring (Standart) | ||
| 10 | 4 | STM6452 | Compression ring (1st repair) | ||
| 10 | 4 | STM6457 | Compression ring (2nd repair) | ||
| 10 | 4 | STM6462 | Compression ring (3nd repair) | ||
| 11 | 4 | STM6448 | Top ring (Standart) | ||
| 11 | 4 | STM6453 | Top ring (1st repair) | ||
| 11 | 4 | STM6458 | Top ring (2nd repair) | ||
| 11 | 4 | STM6463 | Top ring (3nd repair) | ||
| 12 | 4 | STM6454 | Set piston springs (1st repair) | ||
| 12 | 4 | STM6459 | Set piston springs (2nd repair) | ||
| 12 | 4 | STM6464 | Set piston springs (3nd repair) |
