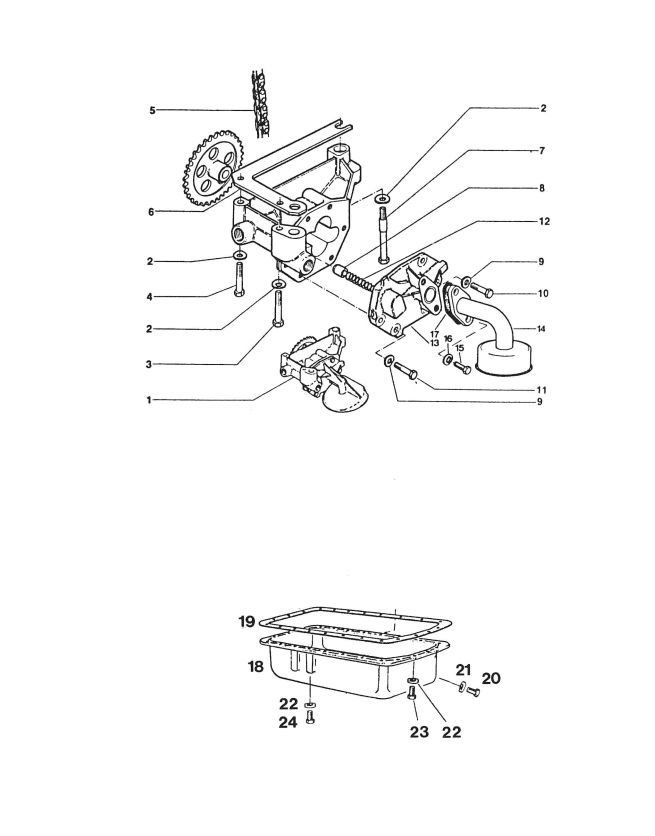

Oilpump – Oilsump Vetus P4.17 P4.19
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM6813 | Oil pump p.417/4.19 | 1.453,00 kr. | |
| 2 | 3 | STM6814 | Washer | ||
| 3 | 1 | STM6815 | Bolt | ||
| 4 | 1 | STM6816 | Bolt | ||
| 5 | 1 | STM6817 | Chain | ||
| 6 | 1 | STM6818 | Spacer | ||
| 7 | 1 | STM6819 | Bolt | ||
| 8 | 1 | STM6494 | Piston | ||
| 9 | 6 | STM6820 | Washer | ||
| 10 | 3 | STM6821 | Bolt | ||
| 11 | 3 | STM6822 | Bolt | ||
| 12 | 1 | STM6823 | Spring | ||
| 13 | 1 | STM6824 | Cover | ||
| 14 | 1 | STM6825 | Strainer | ||
| 15 | 2 | STM6826 | Bolt | ||
| 16 | 2 | STM6827 | Washer | ||
| 17 | 1 | STM6828 | Gasket | ||
| 18 | 1 | STM6832 | Oilsump | ||
| 19 | 1 | STM6833 | Gasket | ||
| 20 | 1 | STM6837 | Plug M16 x 1.5 | ||
| 21 | 1 | STM6838 | Washer | ||
| 22 | 22 | STM6433 | Keeperplate carterbolt | 15,00 kr. | |
| 23 | 20 | STM6434 | Carter bolt 7X100X22 | 11,00 kr. | |
| 24 | 2 | STM6435 | Allen screw |
