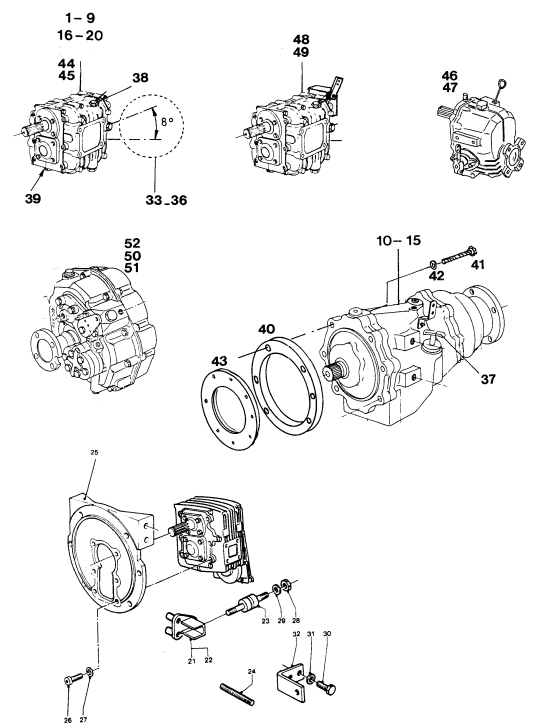

Reverse gear boxes Vetus M3.10 M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM5101 | HBW 100 1,5 R | ||
| 2 | 1 | STM5102 | HBW 100 2 R | ||
| 3 | 1 | STM5103 | HBW 100 3 R | ||
| 4 | 1 | STM5151 | HBW 150 1,5 R | ||
| 5 | 1 | STM5152 | HBW 150 2 R | ||
| 6 | 1 | STM5153 | HBW 150 2,5 R | ||
| 7 | 1 | STM5161 | HBW 150 1,8 V Drive R | ||
| 8 | 1 | STM5162 | ZF15MIV-2.13R gearbox | 37.529,00 kr. | |
| 9 | 1 | STM5163 | ZF15MIV-3.0R gearbox | 37.529,00 kr. | |
| 10 | 1 | STM5204 | Velvet 1 1 71 C | ||
| 11 | 1 | STM5206 | Velvet 1,52 71C 006 | ||
| 12 | 1 | STM5208 | Velvet 1,91 71C 008 | ||
| 13 | 1 | STM5210 | Velvet 2,1 71C 010 | ||
| 14 | 1 | STM5212 | Velvet 2,57 71C 012 | ||
| 15 | 1 | STM5214 | Velvet 2,91 71C 014 | ||
| 16 | 1 | STM5251 | HBW 250 1,5 R | ||
| 17 | 1 | STM5252 | HBW 250 2 R | ||
| 18 | 1 | STM5253 | ZF25M-2.74R gearbox | 22.760,00 kr. | |
| 19 | 1 | STM5502 | HBW 50 2 R | ||
| 20 | 1 | STM5352 | HBW 50 3 R | ||
| 20 | 1 | STM5352 | HBW 35 2 R | ||
| 21 | 1 | STM5166 | Support V drive SB | ||
| 22 | 1 | STM5167 | Support V drive PS | ||
| 23 | 2 | STM3468 | Damper | ||
| 24 | 3 | STM3469 | Stud | ||
| 25 | 1 | STM5026 | Adaptor plate hbw 150 | 436,00 kr. | |
| 26 | 6 | STM5027 | Hex.socket head screw m10x20 DIN7984 steel 8.8 | 11,00 kr. | |
| 27 | 6 | STM4061 | Spring washer | 11,00 kr. | |
| 28 | 4 | STM4014 | Washer | 15,00 kr. | |
| 29 | 4 | STM4018 | Nut | 15,00 kr. | |
| 30 | 4 | STM4013 | Bolt | ||
| 31 | 4 | STM4014 | Washer | 15,00 kr. | |
| 32 | 2 | STM3756 | Support | ||
| 33 | 1 | STM5154 | ZF15MA-1.88R gearbox | 21.065,00 kr. | |
| 34 | 1 | STM5352 | HBW150A 2R | ||
| 35 | 1 | STM5154 | ZF15MA-1.88R gearbox | 21.065,00 kr. | |
| 36 | 1 | STM5155 | ZF15MA-2.63R gearbox | 21.065,00 kr. | |
| 37 | 1 | STM3773 | Dip stick, prm delta (08005500) | 242,00 kr. | |
| 38 | 1 | STM5176 | Dipstick HBW35-50-100 | ||
| 38 | 1 | STM5177 | Oil dipstick hbw hbw 125/150 | 533,00 kr. | |
| 38 | 1 | STM5178 | Dipstick HBW250 | ||
| 39 | 1 | STM5169 | Gasket set HBW35 | ||
| 39 | 1 | STM5170 | Set overhaul seals hbw 50 | 363,00 kr. | |
| 39 | 1 | STM5172 | Set overhaul seals hbw 150 | 230,00 kr. | |
| 39 | 1 | STM5173 | Gasket set HBW250 | ||
| 40 | 1 | STM2769 | Connection ring 4041-SAE7 | 1.307,00 kr. | |
| 41 | 6 | STM1612 | Bolt M10x100 DIN931 | 11,00 kr. | |
| 42 | 6 | STM4014 | Washer | 15,00 kr. | |
| 43 | 1 | STM2770 | Extra flywheel weight M3 | ||
| 44 | 1 | STM5442 | HBW 40 2R | ||
| 45 | 1 | STM5443 | HBW 40 2.7R | ||
| 46 | 1 | STM5402 | TMC40-2.00R gearbox | 8.232,00 kr. | |
| 47 | 1 | STM5403 | TMC 40 2.6:1 | ||
| 48 | 1 | CT50122 | HSW125H 2.14:1 | ||
| 49 | 1 | CT50123 | HSW125H 2.63:1 | ||
| 50 | 1 | CT50152 | PRM150D2 - 2.09R gearbox | 22.760,00 kr. | |
| 51 | 1 | CT50153 | PRM150D3 - 2.83R gearbox | 22.760,00 kr. | |
| 52 | 1 | STM4029 | Adaptor plate PRM150 -> SAE7 |
