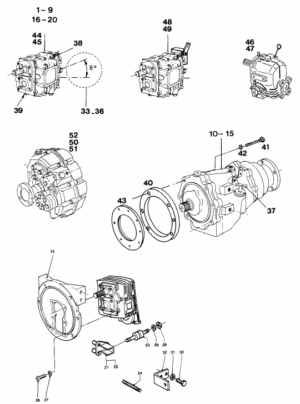

Saildrive Lombardini Vetus M3.10 M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM4052 | Backplate | 529,50 kr. | |
| 2 | 1 | STM2507 | Dowel pin | 18,50 kr. | |
| 3 | 6 | STM4056 | Washer | ||
| 4 | 6 | STM7053 | Bolt | 32,00 kr. | |
| 5 | 1 | STM4054 | Demperplate M3-M4 DIN | 1.150,50 kr. | |
| 6 | 6 | STM1056 | Washer | ||
| 7 | 6 | STM4055 | Bolt TAPBOUT 933 ELVZ M8X 16 KB | 13,00 kr. | |
| 8 | 1 | STM4051 | Flywheelhousing | ||
| 9 | 2 | STM4056 | Washer | ||
| 10 | 2 | STM4057 | Bolt | 20,50 kr. | |
| 11 | 4 | STM4061 | Spring washer | 11,00 kr. | |
| 12 | 4 | STM4013 | Ring | ||
| 13 | 1 | STM4061 | Spring washer | 11,00 kr. | |
| 14 | 1 | STM4062 | Bolt M10x40 DIN933 | 13,50 kr. | |
| 15 | 1 | STM6900 | Adaptor M2, M3, M4 | ||
| 16 | 6 | STM4061 | Spring washer | 11,00 kr. | |
| 17 | 6 | STM4013 | Bolt M10 | ||
| 18 | 1 | STM6904 | Support | ||
| 19 | 2 | STM4014 | Washer | 15,00 kr. | |
| 20 | 2 | STM6909 | Support | ||
| 21 | 2 | STM4018 | Nut | 14,00 kr. | |
| 22 | 1 | STM1703 | Cable clamp | ||
| 23 | 2 | STM1704 | Bolt | ||
| 24 | 2 | STM1707 | Washer | ||
| 25 | 2 | STM1705 | Nut | ||
| 26 | 1 | STM1806 | Cable nipple | 39,00 kr. | |
| 27 | 1 | STM1807 | Washer flat M6 brass nen2269 DIN125 | 13,50 kr. | |
| 28 | 1 | STM1808 | Splitpin | 16,00 kr. | |
| 29 | 2 | STM4010 | Nut | ||
| 30 | 1 | STM4011 | Washer | ||
| 31 | 1 | KSTEUN75 | Engine mount M3 | ||
| 31 | 1 | KSTEUN100 | Engine mount M4 | ||
| 32 | 4 | STM6216 | Stud | ||
| 33 | 4 | STM2022 | Washer | ||
| 34 | 4 | STM4018 | Nut | 14,00 kr. | |
| 35 | 1 | STM6906 | Tail piece | ||
| 36 | 1 | STM6905 | Engine bed | ||
| 37 | 1 | STM5900 | Tail piece + engine bed | ||
| 37 | 1 | STM6909 | Zinc anode Selva | ||
| 37 | 1 | STM6910 | Selva Nut S.S. M16 Selva |
