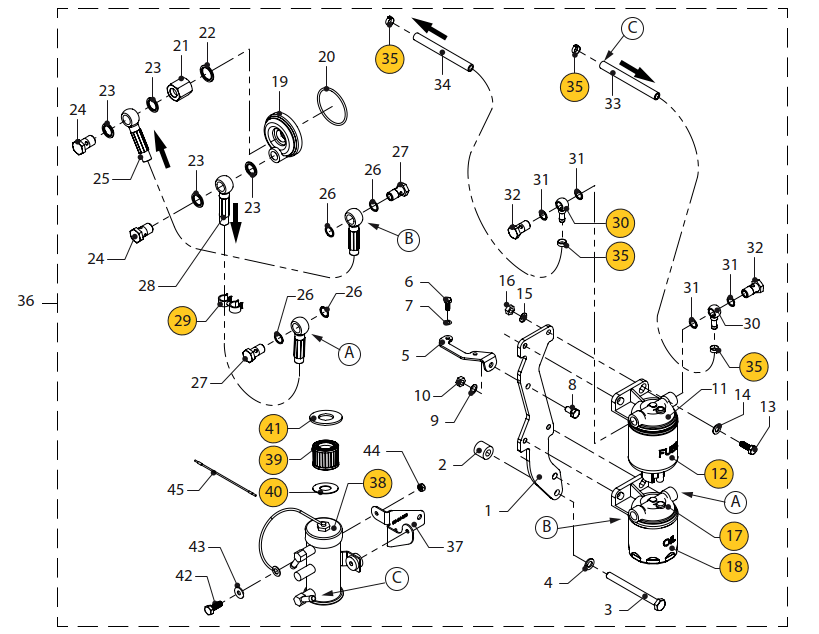

Oil filter+fuel filter+el. fuel pump separately Vetus M3.28 M3.29
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 08-01398 | Support | ||
| 2 | 2 | STM9775 | Bush l=20 | ||
| 3 | 2 | 08-01399 | Bolt M10x1,25x110 | ||
| 4 | 2 | STM4014 | Washer | 15,00 kr. | |
| 5 | 1 | 08-01397 | Support | ||
| 6 | 2 | STM1024 | Bolt | 15,00 kr. | |
| 7 | 2 | STM8568 | Wave spring washer M6 | ||
| 8 | 1 | STM4055 | Bolt TAPBOUT 933 ELVZ M8X 16 KB | 13,00 kr. | |
| 9 | 1 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 10 | 1 | STM2005 | Nut M8 | 12,00 kr. | |
| 11 | 1 | STM6050 | Filter head fuel M12x1 | ||
| 12 | 1 | STM3690 | Fuel filter M2/3/4/P4/VH4 | 214,00 kr. | |
| 13 | 2 | STM1610 | Bolt M8X25 DIN933 ---> B08255YT | 19,00 kr. | |
| 14 | 2 | STM1653 | Washer | 13,00 kr. | |
| 15 | 2 | STM1056 | Spring washer M8 | ||
| 16 | 2 | STM2005 | Nut M8 | 12,00 kr. | |
| 17 | 1 | STM9905 | Filterkop voor separaat oliefilter L- SL marinisatie | 368,00 kr. | |
| 18 | 1 | STM9316 | Oil filter P417/19 P4.21/23/25 | 199,00 kr. | |
| 19 | 1 | STM9911 | Adapter | 630,00 kr. | |
| 20 | 1 | STM9912 | O-ring 58x3 | ||
| 21 | 1 | 08-01404 | Nut M16 -> 20 | ||
| 22 | 1 | STM9908 | Seal washer 20mm | ||
| 23 | 4 | STM9907 | Seal washer M | ||
| 24 | 2 | STM8214 | Banjo bolt m16x1.5 zinc-plated according to DIN 50979-Fe//Zn8//Cn//T0 | 44,00 kr. | |
| 25 | 1 | 08-01403 | Hose l=140 filter out -> adaptor in | ||
| 26 | 4 | STM1062 | Copper Washer M14 | 12,00 kr. | |
| 27 | 2 | STM3518 | Banjo bolt m14 | 34,00 kr. | |
| 28 | 1 | 08-01405 | Hose l=485 adaptor out -> filter in | ||
| 29 | 1 | VD60090 | Hose retainer | 61,00 kr. | |
| 30 | 2 | STM9262 | Banjo eye 3/8" | 53,00 kr. | |
| 31 | 4 | STM7056 | Copper Washer M12 | 19,00 kr. | |
| 32 | 2 | STM8057 | Banjo bolt | 56,00 kr. | |
| 33 | 1 | 08-01460 | Hose Ø8 L= mm | ||
| 34 | 1 | 08-01461 | Hose Ø8 L= mm | ||
| 35 | 4 | STM6185 | Clamp KNIJPKLEM 8.2/17.5/14.6-16.8KB | 15,00 kr. | |
| 36 | 1 | 08-01457 | Kit cpl. | ||
| 37 | 1 | 08-01400 | Support | ||
| 38 | 1 | STM4049 | Electric fuel lift pump 12V M and VH engines | 2.809,00 kr. | |
| 39 | 1 | STM4050 | Fuel Filter element for elec. fuel pump for stm4049 | 140,00 kr. | |
| 40 | 1 | STM4037 | Gasket for STM4049 | 41,00 kr. | |
| 41 | 1 | STM4038 | Gasket | 68,00 kr. | |
| 42 | 2 | STM8372 | SCR-HEX-ISO4017-8.8-WS10-(A2K)-M6X25 | 11,00 kr. | |
| 43 | 2 | STM8726 | Washer M6 DIN 9021 ss | 14,00 kr. | |
| 44 | 2 | STM8129 | Locking nut | 11,00 kr. | |
| 45 | 1 | 08-01459 | Extension wire (12V positive) |
