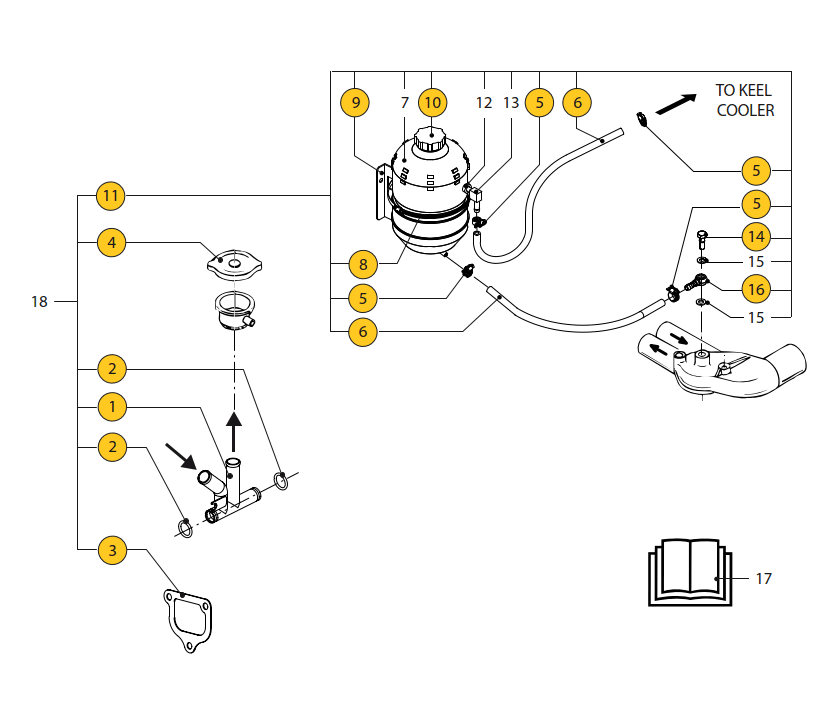

Calorifier connection II Keelcooling Vetus M3.28 M3.29
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 08-01188 | By-pass pipe | 705,00 kr. | |
| 2 | 2 | STM1238 | O-seal | 36,00 kr. | |
| 3 | 1 | STM3967 | Gasket m3.09 replaces stm1235 | 54,00 kr. | |
| 4 | 1 | SETDOPM | Fillerneck and pressure cap M heatexchanger | 290,00 kr. | |
| 5 | 4 | HCS08 | Spændebånd i rustfrit stål - 8-16 mm | 19,50 kr. | |
| 6 | 2 | STM9504 | Hose | 136,00 kr. | |
| 7 | 1 | STM9513 | Headertank | ||
| 8 | 1 | HCS110 | Spændebånd i rustfrit stål - 110-130 mm | 48,00 kr. | |
| 8 | 1 | HCS130 | Spændebånd i rustfrit stål - 130-150 mm | 50,50 kr. | |
| 9 | 1 | STM9502 | Support | 78,50 kr. | |
| 10 | 1 | 08-01141 | Pressure cap + spring | 92,00 kr. | |
| 11 | 1 | STM9514 | Kit expansion tank Keelcool | 690,50 kr. | |
| 12 | 1 | STM9511 | Grommet | ||
| 13 | 1 | STM9512 | Hose pillar | ||
| 14 | 1 | STM7587 | Banjo bolt | ||
| 15 | 2 | STM2018 | Copper Washer M10 | 14,00 kr. | |
| 16 | 1 | STM6198 | Banjo eye boiler connection D= 10 mm | 30,00 kr. | |
| 17 | 1 | 344399.01 | Installation instruction | ||
| 18 | 1 | 08-01202 | Calorifier kit complete |
