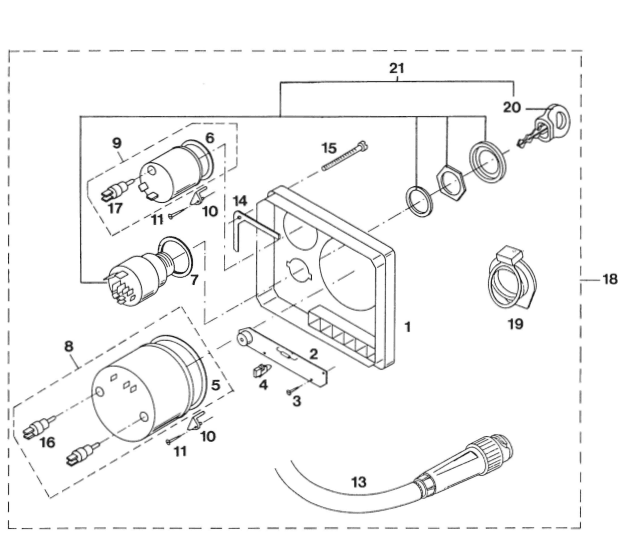

Instrument panel 12V MPR2212 Vetus P4.17 P4.19 P4.42 P4.51 P4.56
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9186 | Panel housing MP22 incl. foil | 387,00 kr. | |
| 2 | 1 | STM9168 | P.c.b. compl. p4/Deutz Connected | 460,00 kr. | |
| 3 | 4 | P2295RKP | Screw | ||
| 4 | 6 | STM9169 | Bulb | ||
| 5 | 1 | STM9170 | Gasket for instrument D 98mm | 34,00 kr. | |
| 6 | 1 | STM9171 | Gasket for instrument D 52mm | 29,00 kr. | |
| 7 | 1 | STM9172 | Gasket for starter switch | 24,00 kr. | |
| 8 | 1 | STM6573 | Tachometer/hourcounter P4.17/P4.19 | ||
| 8 | 1 | STM9047 | Tachometer /hourcounter | ||
| 9 | 1 | STM9177 | Voltmeter | ||
| 10 | 6 | PA6480 B | Support | ||
| 11 | 6 | P35164RKP | Screw | ||
| 13 | 1 | STM6204 | Wiring loom m2.06 panel | 533,00 kr. | |
| 14 | 1 | STM9180 | Gasket | ||
| 15 | 4 | P352542KP | Screw | ||
| 16 | 2 | CT40131 | Bulb | ||
| 17 | 1 | CT40133 | Bulb | ||
| 18 | 1 | STM6572 | Instr.panel cpl. P4.17/P4.19 | ||
| 18 | 1 | STM6415 | Instr.panel cpl. P4.42/P4.51/P4.56 | ||
| 19 | 1 | STM9188 | Cover for starter switch | 70,00 kr. | |
| 20 | 1 | STM9214 | Key, starterswitch #607 universal | 125,00 kr. | |
| 21 | 1 | STMS215 | Lock + Key |
