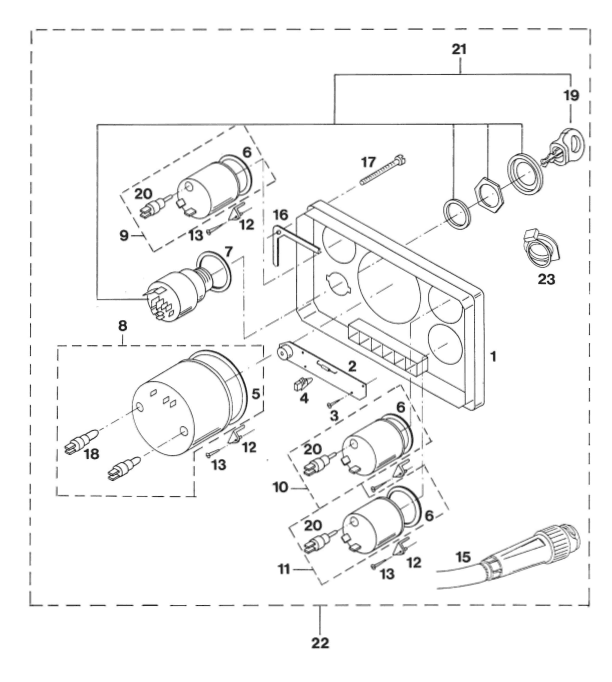

Instrument panel MPR3412 Vetus P4.17 P4.19
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM6571 | Frontplate panel MP34 incl. foil | 404,00 kr. | |
| 2 | 1 | STM9168 | P.c.b. compl. p4/Deutz Connected | 437,50 kr. | |
| 3 | 4 | P2295RKP | Screw | ||
| 4 | 6 | STM9169 | Bulb | ||
| 5 | 1 | STM9170 | Gasket for instrument D 98mm | 32,00 kr. | |
| 6 | 3 | STM9171 | Gasket for instrument D 52mm | 27,50 kr. | |
| 7 | 1 | STM9172 | Gasket for starter switch | 23,00 kr. | |
| 8 | 1 | STM6573 | Tachometer /hour meter | ||
| 9 | 1 | STM9177 | Voltmeter | ||
| 10 | 1 | STM9178 | Temperature gauge | ||
| 11 | 1 | STM9179 | 0il pressure gauge | ||
| 12 | 12 | PA6488 | Mounting bracket for instrument mounting | 30,00 kr. | |
| 13 | 12 | P35164RKP | Screw | ||
| 15 | 1 | STM6543 | Panel wiring MPR34 | ||
| 16 | 1 | STM9181 | Gasket for engine panel MP34 | 37,00 kr. | |
| 17 | 4 | P35254ZKP | Screw | ||
| 18 | 2 | CT40131 | Bulb | ||
| 19 | 1 | STM9214 | Key, starterswitch #607 universal | 119,00 kr. | |
| 20 | 3 | CT40133 | Bulb | ||
| 21 | 1 | STM9215 | Starter-preheat keyswitch with 2 keys | 412,00 kr. | |
| 22 | 1 | STM6545 | Instr. panel compl. | ||
| 23 | 1 | STM9188 | Cover for starter switch | 66,50 kr. |
