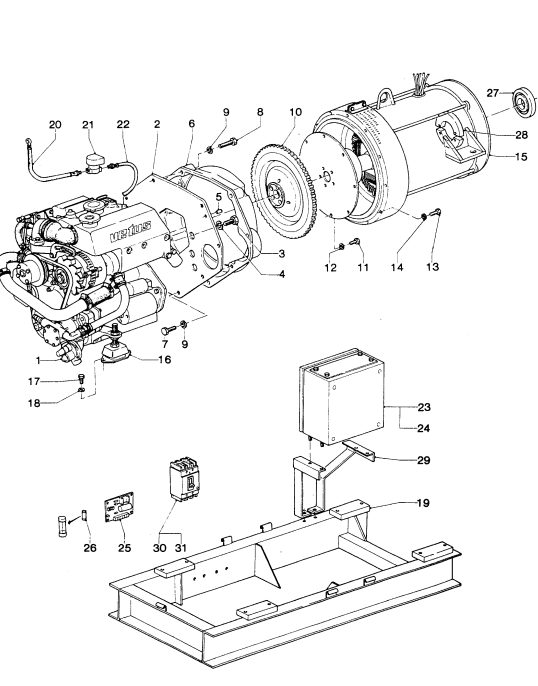

Generator set 15 KVA Vetus M4.14 GEN15KVA
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM3811 | Basic engine K3D | ||
| 2 | 1 | STM3800 | Rear plate M4082125 | ||
| 3 | 6 | STM7053 | Bolt | 34,00 kr. | |
| 4 | 6 | STM4056 | Spring washer | ||
| 5 | 2 | STM3813 | Pin.knock 10x12 | 19,00 kr. | |
| 6 | 1 | STM3802 | Flywheelhousing MM431538S | ||
| 7 | 5 | STM3817 | Bolt M12x1,25x25 | ||
| 8 | 2 | STM3818 | Bolt M12x1,25x50 | ||
| 9 | 7 | STM4003 | Washer | 19,00 kr. | |
| 10 | 1 | STM3801 | Flywheel MM430867S | ||
| 11 | 8 | STM3355 | Bolt M8X20 DIN933 | 15,00 kr. | |
| 12 | 8 | STM1056 | Spring washer M8 | ||
| 13 | 8 | STM3705 | Bolt M10x1,25x25 | ||
| 14 | 8 | STM4061 | Spring washer | 11,00 kr. | |
| 15 | 1 | STM3804 | Generator LSA 41 | ||
| 16 | 4 | STM1071 | Vibration damper K75 | ||
| 17 | 8 | STM4016 | Bolt M10x20 DIN933 | 13,00 kr. | |
| 18 | 8 | STM4061 | Spring washer | 11,00 kr. | |
| 19 | 1 | STM3803 | Frame genset | ||
| 20 | 1 | STM7026 | Fuel pipe | ||
| 21 | 1 | STM7091 | Solenoid valve | 944,00 kr. | |
| 22 | 1 | STM7027 | Fuel pipe | ||
| 23 | 1 | STM3822 | Elec. connect. box 22,5 Amp | ||
| 24 | 1 | STM3823 | Elec. connect. box 45 Amp. | ||
| 25 | 1 | STM3824 | Power control RS 152 A | ||
| 26 | 1 | STM3825 | Fuse 2 T | ||
| 27 | 1 | STM3826 | Ball bearing | ||
| 28 | 1 | STM3827 | Rotating rectifier | ||
| 29 | 1 | STM6348 | Set of brackets | ||
| 30 | 1 | STM3721 | Circuitbreaker 22,5 a 3p | 183,00 kr. | |
| 31 | 1 | STM3720 | Circuitbreaker 45 a 3p | 261,00 kr. |
