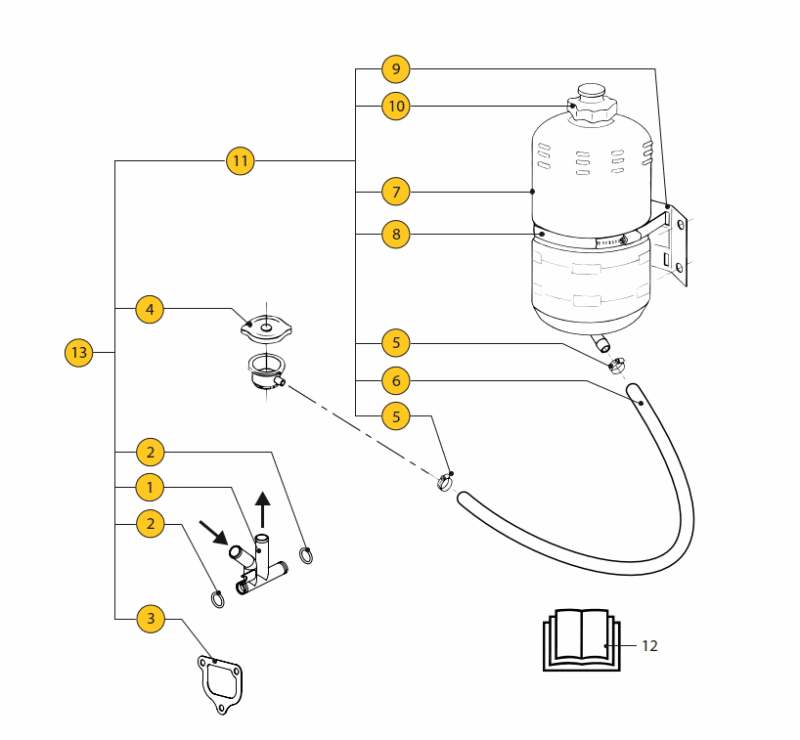

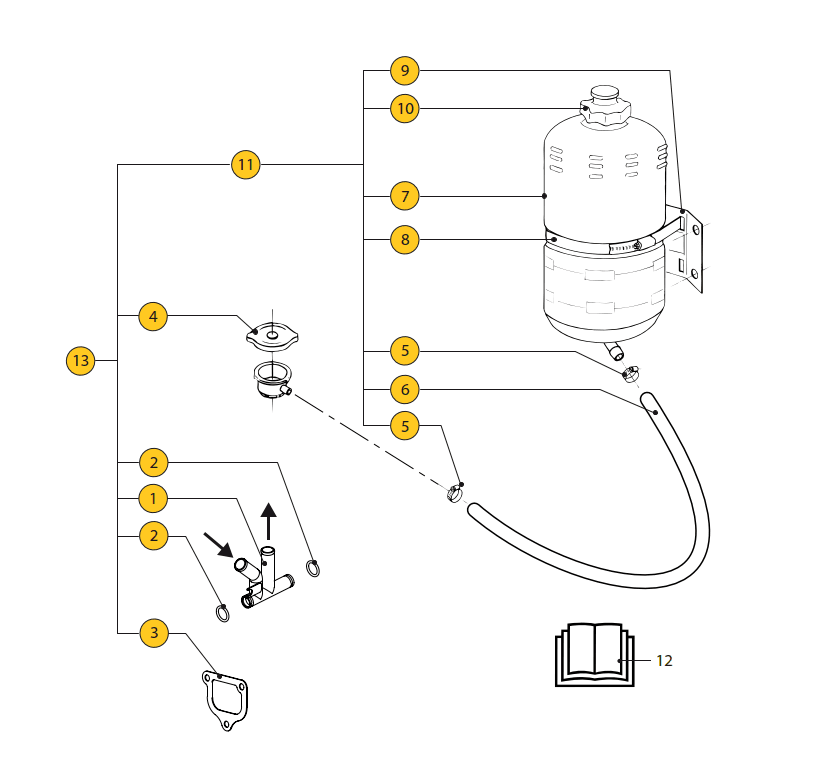

Calorifier connection II Intercooling Vetus M3.28 M3.29
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 08-01188 | By-pass pipe | 760,00 kr. | |
| 2 | 2 | STM1238 | O-seal | 39,00 kr. | |
| 3 | 1 | STM3967 | Gasket m3.09 replaces stm1235 | 58,00 kr. | |
| 4 | 1 | SETDOPM | Fillerneck and pressure cap M heatexchanger | 305,00 kr. | |
| 5 | 2 | HCS08 Sl | Hose clamp | ||
| 6 | 1 | STM9504 | Hose | 143,00 kr. | |
| 7 | 1 | EXPT1,5U | Expansion tank 1,5L assy Unpressurized | 847,00 kr. | |
| 8 | 1 | HCS110 | Spændebånd i rustfrit stål - 110-130 mm | 44,00 kr. | |
| 8 | 1 | HCS130 | Spændebånd i rustfrit stål - 130-150 mm | 54,00 kr. | |
| 9 | 1 | STM9502 | Support | 82,00 kr. | |
| 10 | 1 | 08-01141 | Pressure cap + spring | 97,00 kr. | |
| 11 | 1 | EXPT1,5U | Expansion tank 1,5L assy Unpressurized | 847,00 kr. | |
| 12 | 1 | 3443991 | instruction | ||
| 13 | 1 | 08-01190 | Calorifier connection kit, M2 & M3 | 2.421,00 kr. |
