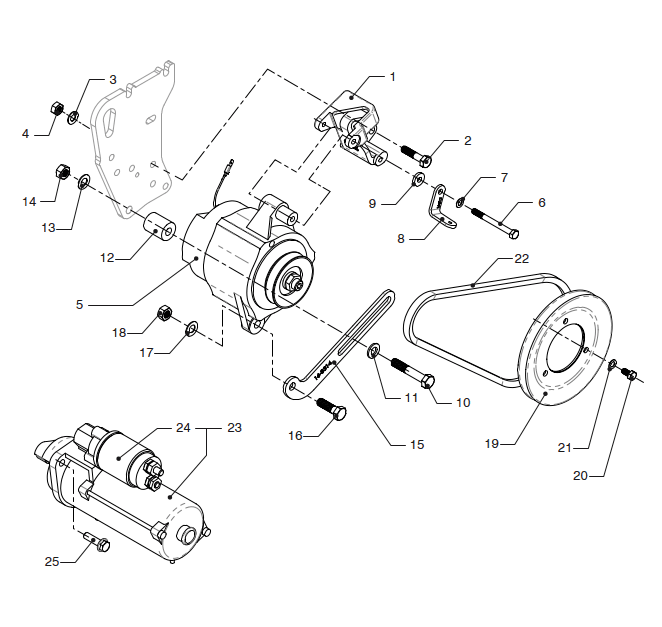

Alternator 12V-160A 1p Vetus VD4.120 VD4.140 VD6.170 VD6.210
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 16-5573 | Support | ||
| 2 | 3 | B10455Y | Hex head bolt M10x45 | ||
| 3 | 3 | R105Y | Wave spring washer M10 | ||
| 4 | 3 | M10Y | Nut M10 | ||
| 5 | 1 | 16-3259 | Alternator 12V/160A 1p | 3.390,00 kr. | |
| 6 | 1 | B08855Y | Hex head bolt M8x85 | ||
| 7 | 1 | R085Y | Wave spring washer M5 | ||
| 8 | 1 | 16-5929 | Bracket | ||
| 9 | 1 | CT30059 | Washer 8.4 x 21 x 4mm DIN7349 | 13,00 kr. | |
| 10 | 1 | B12705Y | Hex head bolt M12x70 | ||
| 11 | 1 | STM3258 | Washer | 12,00 kr. | |
| 12 | 1 | 16-3315 | Bush l=38 | ||
| 13 | 1 | R125Y | Wave spring washer M12 | ||
| 14 | 1 | M12Y | Nut M12 | ||
| 15 | 1 | 16-3314 | Tensioner bracket | ||
| 16 | 1 | B12405Y | Hex head bolt M12x40 | ||
| 17 | 1 | R125Y | Wave spring washer M12 | ||
| 18 | 1 | M12Y | Nut M12 | ||
| 19 | 1 | 18-15643 | Pulley Deutz | 407,00 kr. | |
| 20 | 3 | B08165YT | Hex head bolt M8x16 | ||
| 21 | 3 | R085Y | Wave spring washer M8 | ||
| 22 | 1 | 16-4258 | V-belt SPA profile, Pitch length 925mm VD4/VD6 | 145,00 kr. | |
| 23 | 1 | STM8652 | Starter 12V 1P DT(A)43/44 DT(A)64/66/67 | 5.375,00 kr. | |
| 24 | 1 | STM9758 | Relay | ||
| 25 | 3 | B1035RIPPB | Hex.locking bolt M10x35 |
