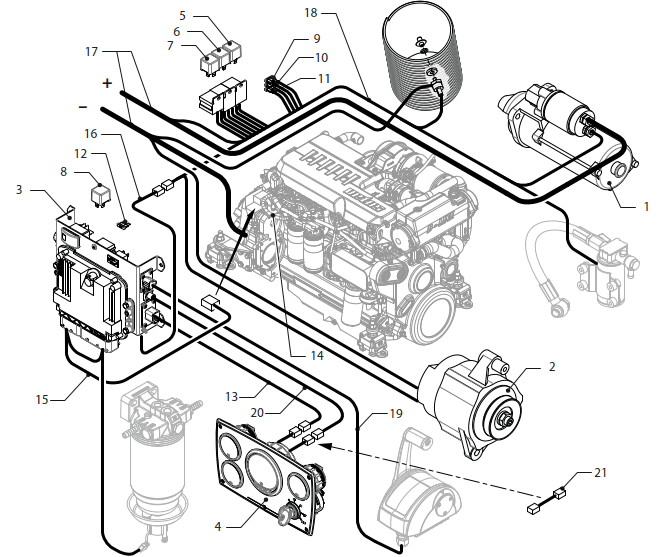

Engine wiring 24V-2p Vetus VD4.120 VD4.140 VD6.170 VD6.210
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM8655 | Starter 24V 2P DT(A)43/44 DT(A)64/66/67 | 5.613,00 kr. | |
| 2 | 1 | 17-9889 | Alternator 24V - 60A | 3.951,50 kr. | |
| 3 | 1 | 16-7210 | Bracket (ex. EMR and relais) | ||
| 4 | 1 | MPA34CANBS4 | Aluminium motor panel typen MPA34 | 8.214,50 kr. | |
| 5 | 1 | STM8225 | Relay 24V-40a | 119,00 kr. | |
| 6 | 1 | STM8225 | Relay 24V-40a | 119,00 kr. | |
| 7 | 1 | STM8295 | Relais 24V - 10/20A DT(A)44/66 | 55,00 kr. | |
| 8 | 1 | STM8295 | Relais 24V - 10/20A DT(A)44/66 | 55,00 kr. | |
| 9 | 1 | BFUSE03 | Blade fuse 3A (start) | ||
| 10 | 1 | BFUSE25 | Blade fuse 25A (Electric oil pump) | ||
| 11 | 1 | BFUSE10 | Blade fuse 10A (EMR) | ||
| 12 | 1 | BFUSE07 | Blade fuse 7,5A (diagnos / CAN) | ||
| 13 | 1 | MPKA06 | Mellemkabel C, 2-12 m MPKA - 6 mtr (STM6943) | 1.210,50 kr. | |
| 14 | 1 | DZ48050-6 | Engine wiring loom KHD | ||
| 15 | 1 | DZ48049-6 | Connection cable KHD (motor => EMR) | ||
| 16 | 1 | 16-6924 | EMR wiring | ||
| 17 | 1 | 16-6923MV | Battery terminal wires standard | ||
| 18 | 1 | 16-6923 | Customer motor wiring | ||
| 19 | 1 | EC3E3MD | Elektrisk gaskabel til VD motor L = 3 m | 805,50 kr. | |
| 20 | 1 | ECSBC05 | ECS Bus kabel til at forbinde alle komponenter - 5,0 m | 1.002,00 kr. | |
| 21 | 1 | ECSBCC | ECS Bus omskifter kabel Han / hun | 475,00 kr. |
