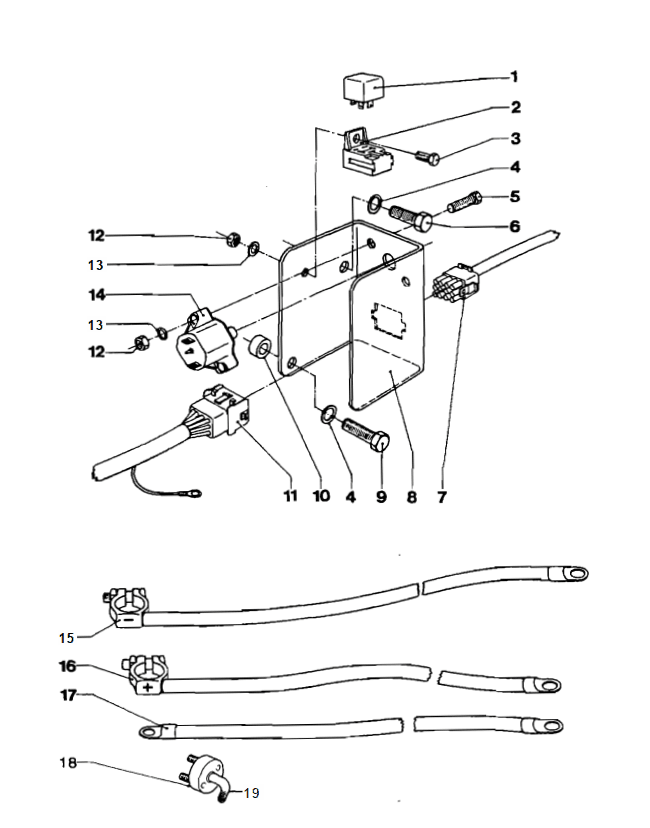

Wiring support Vetus M2.05
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9053 | Relay | ||
| 2 | 1 | STM9052 | Connector for relais (bj516) | 29,00 kr. | |
| 3 | 1 | STM9063 | Bolt --> B05105YT | 11,00 kr. | |
| 4 | 2 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 5 | 2 | STM9062 | Bolt | 11,00 kr. | |
| 6 | 1 | STM7059 | SCR-HEX-ISO4017-8.8-WS13-(A2K)-M8X30 M8X30 DIN933 | 15,00 kr. | |
| 7 | 1 | STM9056 | Extension loom 2m brown | ||
| 8 | 1 | STM3501 | Wiring support M2.05 | ||
| 9 | 1 | STM1651 | Bolt M8X35 DIN933 | 13,00 kr. | |
| 10 | 1 | STM3716 | Distance piece 20x10 | ||
| 11 | 1 | STM3706 | Engine wiring M2.05 | ||
| 12 | 3 | STM1705 | Nut | ||
| 13 | 3 | STM1707 | Washer | ||
| 14 | 1 | STM9054 | Circuit breaker | ||
| 15 | 1 | STM3715 | Battery cable M2.05 black | ||
| 16 | 1 | STM3714 | Battery cable M2.05 red | ||
| 17 | 1 | STM3713 | Connection cable M2.05 15 mm2 | ||
| 18 | 1 | STM3712 | Main switch hella | 228,00 kr. | |
| 19 | 1 | STM3762 | Key |
