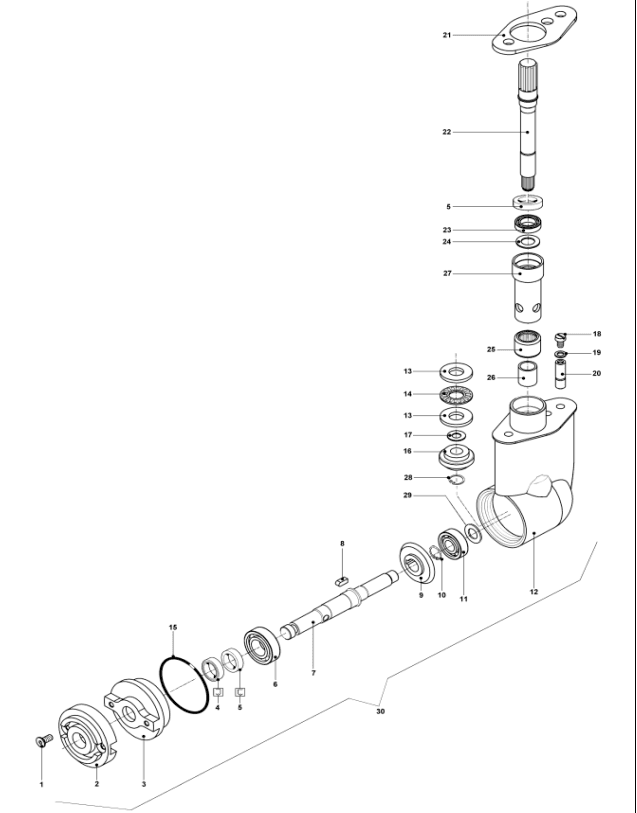

Tailpiece for thrust tunnel 185mm Vetus BOW9512 BOW9524
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 2 | B05121R | Slotted countersunk headscrew M5x12 DIN963 | ||
| 2 | 1 | BP1040 | Zinc anode | ||
| 3 | 1 | BP1041 | Cover tailpiece M48x1.5 | ||
| 4 | 1 | BP55A | Radial-liptype oilseal D14x22x4 NBR ss spring/insert | 145,00 kr. | |
| 5 | 1 | BP1031 | Radial lip type oil seal | ||
| 6 | 1 | BP287 | Bearing for tailpiece D 15 x D 32 x 9mm (SKF6002) | 87,00 kr. | |
| 7 | 1 | BP1043 | Secondary shaft S.S. | ||
| 8 | 1 | BP1118 | Key secondary shaft | ||
| 9 | 1 | BP1190 | Secundary gear wheel Z=29 | ||
| 10 | 1 | BP1116 | Retaining ring shaft Ø11 | ||
| 11 | 1 | BP08 | Ball-bearing | ||
| 12 | 1 | BP1191 | Housing tailpiece | ||
| 13 | 1 | BP1195 | Raceway washer f AXK1226 | ||
| 14 | 1 | BP1194 | Ndle rllr thrust bearing | ||
| 15 | 1 | BP1042 | O-ring | ||
| 16 | 1 | BP1192 | Primary gear wheel Z=17 | ||
| 18 | 1 | B05083R | Slotted cheese head screw | ||
| 19 | 1 | BP1016 | Fiber ring | ||
| 20 | 1 | BP1015 | Oil filler pipe | ||
| 21 | 1 | BP1119 | Spacer BOW60-75-80-95 | 48,00 kr. | |
| 22 | 1 | BP1193 | Primary shaft | ||
| 23 | 1 | BP75 | Deep-groove ball-bearing | ||
| 25 | 1 | BP1197 | Inner ring for Needle roller bearing | ||
| 26 | 1 | BP1223 | Insert tailpiece | ||
| 27 | 1 | BP1198 | Retaining ring for shaft Ø12 DIN471 |
