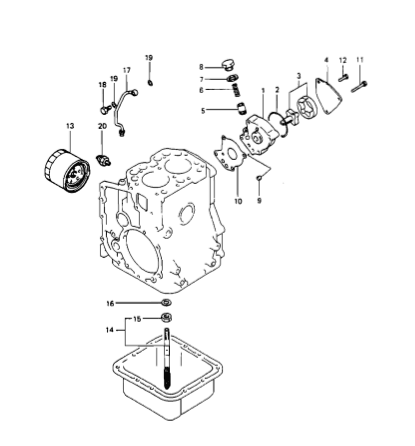

Oil pump VETUS M2.05
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM3652 | Body oil pump | ||
| 2 | 1 | STM3653 | O-ring | 63,00 kr. | |
| 3 | 1 | STM3654 | Rotor assy m2.05 | 173,00 kr. | |
| 4 | 1 | STM3655 | Cover oil pump | 218,00 kr. | |
| 5 | 1 | STM2647 | Plunger | 34,00 kr. | |
| 6 | 1 | STM3656 | Spring relieve | 13,00 kr. | |
| 7 | 1 | STM2649 | Gasket | 24,00 kr. | |
| 8 | 1 | STM2648 | Plug | 15,00 kr. | |
| 9 | 2 | STM2657 | Plug 1/8 | ||
| 10 | 1 | STM3658 | Gasket , body oil p | 48,00 kr. | |
| 11 | 3 | STM3657 | Bolt M6x40 | ||
| 12 | 1 | STM3659 | Bolt M6 x 20 | 11,00 kr. | |
| 13 | 1 | STM0051 | Oil filter M2/ M3/ M4 | 125,00 kr. | |
| 14 | 1 | STM3660 | Screen oil | 179,00 kr. | |
| 15 | 1 | STM3661 | Nut | 11,00 kr. | |
| 16 | 1 | STM3662 | Washer, seal | 11,00 kr. | |
| 17 | 1 | STM3663 | Pipe oil assy m2.05 | 48,00 kr. | |
| 18 | 1 | STM3664 | Banjo bolt | 48,00 kr. | |
| 1-9 | 1 | STM3651 | Oil pump m2.05 | 1.017,00 kr. | |
| 19 | 2 | STM3665 | Ring Gasket | ||
| 20 | 1 | STM3666 | Oil pressure switch |
