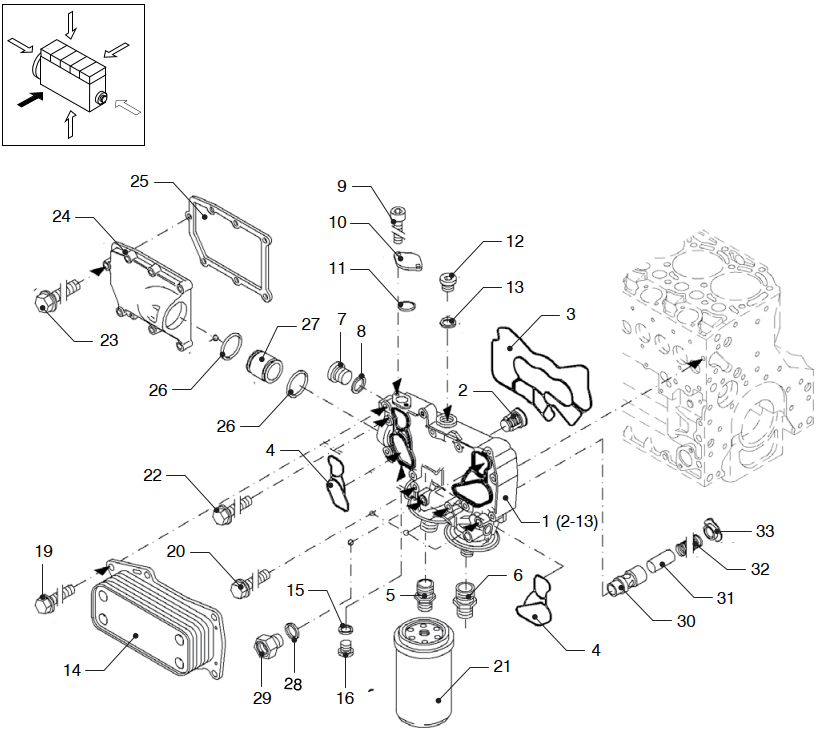

Oil cooler Vetus VD4.120 VD4.140 VD6.170 VD6.210
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | DZ15001 | Oil cooler box | ||
| 2 | 1 | DZ15002 | By-pass component | ||
| 3 | 1 | DZ15003 | Gasket for oil cooler box VD4/VD6 | 920,00 kr. | |
| 4 | 2 | DZ15004 | Gasket for oil cooler box VD4/VD6 | 484,00 kr. | |
| 5 | 1 | DZ15005 | Threaded bush | ||
| 6 | 1 | DZ15006 | Socket/adapter | ||
| 7 | 1 | DZ15007 | Screw plug | ||
| 8 | 1 | DZ15008 | Sealing ring | ||
| 9 | 2 | DZ15009 | Hexagon bolt | ||
| 10 | 1 | DZ15010 | Blank flange | ||
| 11 | 1 | DZ15011 | O-seal | ||
| 12 | 1 | DZ15012 | Screw plug | ||
| 13 | 1 | DZ15013 | Sealing ring | ||
| 14 | 1 | DZ15014 | Oil cooler VD4 | 11.622,00 kr. | |
| 14 | 1 | DZ150146 | Oil cooler VD6 | 13.075,00 kr. | |
| 15 | 1 | DZ15015 | Sealing ring | ||
| 16 | 1 | DZ15016 | Screw plug | ||
| 19 | 7 | DZ15019 | Hexagon bolt | ||
| 20 | 3 | DZ15020 | Hexagon bolt | ||
| 21 | 1 | 17-8508 | Spin-on oil filter VD6 | ||
| 21 | 1 | 17-8512 | Spin-on oil filter VD4 | ||
| 22 | 5 | DZ15022 | Hexagon bolt | ||
| 23 | 7 | DZ15023 | Hexagon bolt VD6 | ||
| 24 | 1 | DZ15024 | Cover oil cooler box VD6 | ||
| 25 | 1 | DZ15025 | Gasket VD6 | ||
| 26 | 2 | DZ15026 | O-seal VD4/VD6 | 58,00 kr. | |
| 27 | 1 | DZ15027 | Plug VD4/VD6 | 213,00 kr. | |
| 28 | 1 | DZ15028 | Sealing ring | ||
| 29 | 1 | DZ15029 | Screw plug | ||
| 30 | 1 | DZ15041 | Valve seat | ||
| 31 | 1 | DZ15042 | Valve plunger | ||
| 32 | 1 | DZ15043 | Spring | ||
| 33 | 1 | DZ15044 | Valve head |
