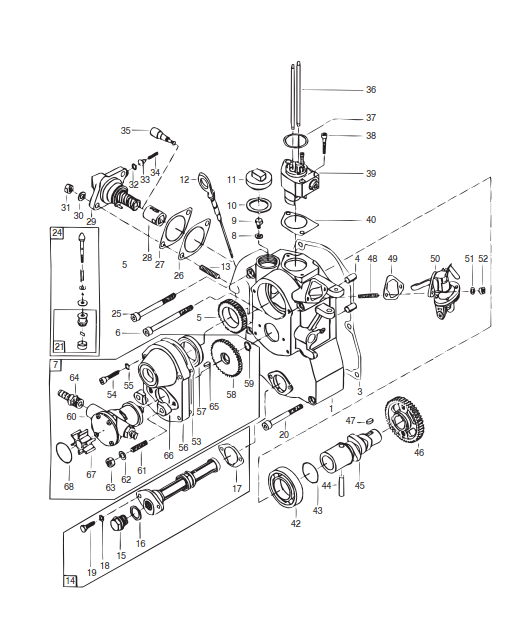

Housing Vetus F1.02 F1.03
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | VF20084 | Housing | ||
| 3 | 3 | VF20085 | Gasket | 48,00 kr. | |
| 4 | 2 | VF20086 | Bush 10x16 | ||
| 5 | 1 | VF20087 | Gearwheel | ||
| 6 | 1 | VF60056 | Cylinder head bolt M8x90 | ||
| 7 | 1 | VF30007 | Seawaterpump assey | ||
| 8 | 1 | VF50010 | Spring washer | 11,00 kr. | |
| 9 | 1 | VF20090 | Bolt | 44,00 kr. | |
| 10 | 1 | VF20091 | Seal | 11,00 kr. | |
| 11 | 1 | VF20092 | Cap | 48,00 kr. | |
| 12 | 1 | VF20093 | Dipstick | 39,00 kr. | |
| 13 | 2 | VF60011 | Stud M8x20 | ||
| 14 | 1 | VF20094 | Oil filter | ||
| 15 | 1 | VF20095 | Plug r3/4'' | 29,00 kr. | |
| 16 | 1 | VF20096 | Washer | 11,00 kr. | |
| 17 | 1 | VF20097 | Gasket | ||
| 18 | 2 | VF20098 | Washer | ||
| 19 | 2 | VF20099 | Bolt M6x20 | ||
| 20 | 2 | VF20100 | Allen screw M8x70 | ||
| 21 | 1 | VF20101 | Handle | 39,00 kr. | |
| 24 | 1 | VF20102 | Cold start divice | ||
| 25 | 3 | VF20103 | Allen screw M8x80 | ||
| 26 | 1 | VF60012 | Plate 0,2mm | 15,00 kr. | |
| 26 | 1 | VF60013 | Plate 0.4 mm | ||
| 26 | 1 | VF60014 | Plate 1.0 mm | ||
| 26 | 1 | VF60015 | Plate 0,5mm | 23,00 kr. | |
| 27 | 1 | VF60016 | Gasket | 15,00 kr. | |
| 28 | 1 | VF60017 | Roller bush | 286,00 kr. | |
| 29 | 1 | VF60018 | Fuel pump | 1.743,00 kr. | |
| 30 | 2 | VF60019 | Spring washer | ||
| 31 | 2 | VF60020 | Nut M8 | ||
| 32 | 1 | VF60021 | Seal | ||
| 33 | 1 | VF60022 | Valve | ||
| 34 | 1 | VF60023 | Spring | ||
| 35 | 1 | VF60024 | Element | ||
| 36 | 2 | VF20104 | Plunger rod | ||
| 37 | 1 | VF20105 | O-ring 32x3 | 39,00 kr. | |
| 38 | 2 | VF20106 | Cylinder head bolt m5x30 | 11,00 kr. | |
| 39 | 1 | VF20107 | Decompression relief divice | ||
| 40 | 1 | VF20108 | Gasket | ||
| 40 | 1 | VF20109 | Oilfilter GHS4 | 240,00 kr. | |
| 42 | 1 | VF20110 | Bearing | 291,00 kr. | |
| 43 | 1 | VF20111 | O-ring | 39,00 kr. | |
| 44 | 1 | VF20112 | Bolt | ||
| 45 | 1 | VF20113 | Camshaft | ||
| 46 | 1 | VF20114 | Gearwheel | ||
| 47 | 1 | VF20032 | Key 6x4x12 | 11,00 kr. | |
| 48 | 2 | VF60025 | Stud M6x20 | ||
| 49 | 1 | VF60026 | Gasket | 13,00 kr. | |
| 50 | 1 | VF60027 | Lift pump fuel | ||
| 51 | 2 | VF60028 | Washer | 11,00 kr. | |
| 52 | 2 | VF60044 | Nut M6 | 11,00 kr. | |
| 53 | 1 | VF30008 | Gasket | ||
| 54 | 4 | VF30009 | Allen screw M6x25 | ||
| 55 | 4 | VF30010 | Washer | ||
| 56 | 1 | VF30011 | Cover | 533,00 kr. | |
| 57 | 1 | VF30012 | Oil seal 34.8x50x7/7.5 | ||
| 58 | 1 | VF30013 | Gearwheel | ||
| 59 | 1 | VF30014 | Spring lock washer | 11,00 kr. | |
| 60 | 1 | VF30015 | Seawater pump | ||
| 61 | 2 | VF30016 | Stud M8x22 | 22,00 kr. | |
| 62 | 2 | VF30029 | Washer | 11,00 kr. | |
| 63 | 2 | VF30030 | Nut M8 | 11,00 kr. | |
| 64 | 2 | VF30019 | Hose pillar | ||
| 65 | 1 | VF30020 | Key 3x3x12 | 11,00 kr. | |
| 66 | 2 | VF30021 | Clamp plate | 261,00 kr. | |
| 67 | 1 | VF30022 | Impeller | ||
| 68 | 1 | VF30023 | Gasket |
