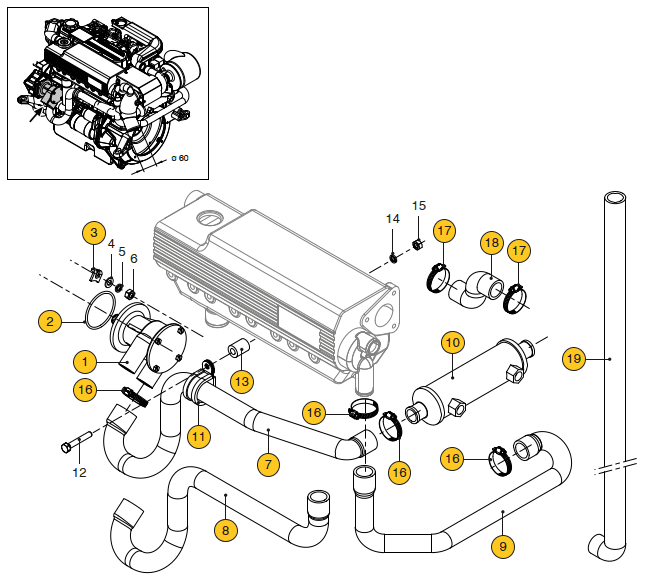

Hoses – cooling system, raw water, sea water pump type 40 Vetus M4.55
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9893 | Raw water pump M4.55/M4.56 78 L. p/min. | 2.518,00 kr. | |
| 2 | 1 | STM6127 | O-ring | 31,00 kr. | |
| 3 | 4 | STM6126 | Clamp plate | 38,00 kr. | |
| 4 | 4 | STM1653 | Washer | 13,00 kr. | |
| 5 | 4 | STM1056 | Spring washer M8 | ||
| 6 | 4 | STM2005 | Nut M8 | 12,00 kr. | |
| 7 | 1 | STM9891 | Hose for oil cooler | 174,00 kr. | |
| 8 | 1 | STM9892 | Hose seawater pump < => heat exchanger | 125,00 kr. | |
| 9 | 1 | STM7448 | Hose oil cooler heat exchanger | ||
| 10 | 1 | STM5007 | Oil cooler 7", diam. 55 mm 177.8 mm length element | 2.954,00 kr. | |
| 11 | 1 | STM3061 | Clamp | 24,00 kr. | |
| 12 | 1 | STM2261 | Bolt M8X40 DIN933 | 11,00 kr. | |
| 13 | 1 | STM7646 | Bushing BUS M 8 X 10 KB | 53,00 kr. | |
| 14 | 1 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 15 | 1 | STM2005 | Nut M8 | 12,00 kr. | |
| 16 | 4 | STM3005 | Hose clamp 35-50 | ||
| 17 | 2 | HCS16 | Spændebånd i rustfrit stål - 16-27 mm | 34,00 kr. | |
| 18 | 1 | STM7452 | Hose | 68,00 kr. | |
| 19 | 2 | STM7488 | Hose for airvent 1,5m | 208,00 kr. |
