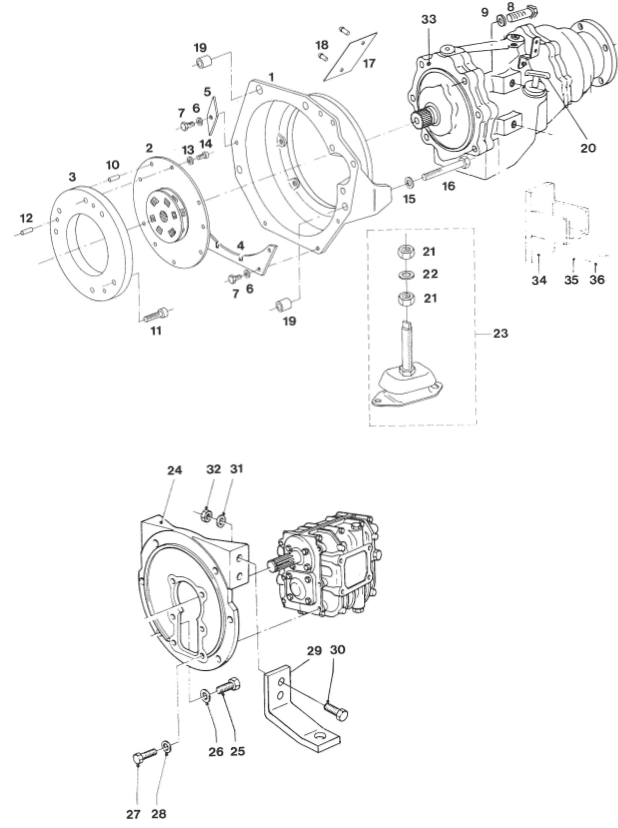

Flywheel housing Velvet Vetus P4.17 P4.19 P4.42
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM6519 | Flywheel housing Velvet | ||
| 2 | 1 | STM5021 | Damper plate Velvet | ||
| 3 | 1 | STM6505 | Aggravation flywheel P4.17 P4.19 P4.42 | 1.453,00 kr. | |
| 4 | 1 | STM6521 | Seal p4.17/4.19 | 155,00 kr. | |
| 5 | 1 | STM6520 | Cover | ||
| 6 | 4 | STM1025 | Wave washer M6 | 15,00 kr. | |
| 7 | 4 | STM1030 | Bolt M6x20 | 15,00 kr. | |
| 8 | 6 | STM5028 | Bolt 7/16”UNCx 3 1/2" | ||
| 9 | 6 | STM5018 | Spring washer D4.29 | 11,00 kr. | |
| 10 | 3 | STM3452 | Dowel pin 6,35mm | 15,00 kr. | |
| 11 | 6 | STM6539 | Allen screw M8x40 | 11,00 kr. | |
| 12 | 3 | STM6537 | Pin 6x20 DIN6325 | ||
| 13 | 6 | STM1056 | Washer | ||
| 14 | 6 | STM6111 | Socket head screw M8x16 | 11,00 kr. | |
| 15 | 4 | STM4061 | Spring washer | 11,00 kr. | |
| 16 | 4 | STM1612 | Bolt M10x100 DIN931 | 11,00 kr. | |
| 17 | 1 | STM1054 | Model plate | ||
| 18 | 2 | STM3528 | Pin 3x5 DIN1476 | ||
| 19 | 2 | STM6611 | Busch | ||
| 20 | 1 | STM5179 | Dipstick Velvet | ||
| 21 | 4 | STM4010 | Nut M16x1.5 | ||
| 22 | 2 | STM4011 | Washer M16 | ||
| 23 | 2 | KSTEUN75 | Vibration damper | ||
| 24 | 1 | STM4053 | Adapterplate HBW | ||
| 25 | 6 | STM5017 | Bolt M4.171555d4.269dt4.29 | 11,00 kr. | |
| 26 | 6 | STM5018 | Spring washer D4.29 | 11,00 kr. | |
| 27 | 6 | STM1610 | Bolt M8X25 DIN933 ---> B08255YT | 19,00 kr. | |
| 28 | 6 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 29 | 2 | STM6052 | Engine support | 271,00 kr. | |
| 30 | 4 | STM4060 | Bolt M12x1.25x35 | ||
| 31 | 4 | STM4056 | Wave spring washer M12 | ||
| 32 | 4 | STM4058 | Nut M12x1.25 | ||
| 33 | 1 | STM5206 | Gearbox Velvet 1.52 71C 006 | ||
| 33 | 1 | STM5208 | Gearbox Velvet 1.91 71C 008 | ||
| 33 | 1 | STM5210 | Gearbox Velvet 2.1 71C 010 | ||
| 33 | 1 | STM5212 | Gearbox Velvet 2.57 71C 012 | ||
| 33 | 1 | STM5214 | Gaerbox Velvet 2.91 71C 014 | ||
| 34 | 2 | STM5016 | Support | 116,00 kr. | |
| 35 | 4 | STM5015 | Washer | ||
| 36 | 4 | STM5014 | Bolt | 24,00 kr. |
