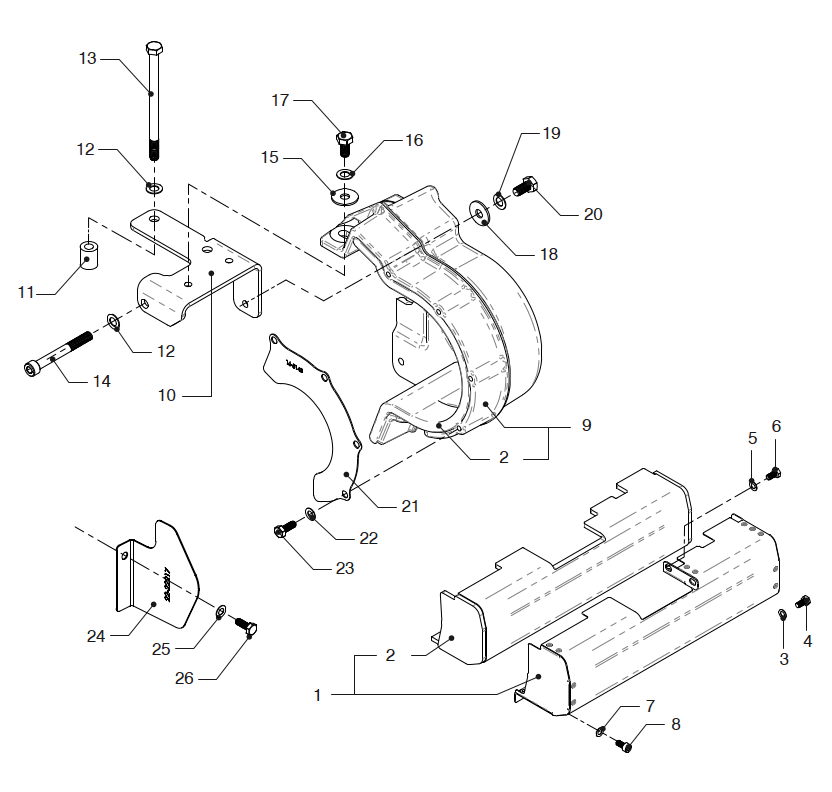

Exhaust isolation + turbo insulation Vetus VD4.120 VD4.140
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 16-6320 | Exhaust (manifold) isulation assy 4 cylinder | 1.598,00 kr. | |
| 2 | 1 | STM9871 | Isolation mat | ||
| 3 | 2 | R085Y | Wave spring washer M8 | ||
| 4 | 2 | B08165Y | Hex head bolt M8x16 | ||
| 5 | 2 | R085Y | Wave spring washer M8 | ||
| 6 | 2 | B08165YT | Hex head bolt M8x16 | ||
| 7 | 4 | R085Y | Wave spring washer M8 | ||
| 8 | 4 | B08167Y | Allen bolt M8x16 | ||
| 9 | 1 | 16-7475 | Turbo isul. assy 4 cylinder | 1.889,00 kr. | |
| 10 | 1 | 16-5023 | Support | ||
| 11 | 2 | 16-5024 | Bush l=20 | ||
| 12 | 3 | R085Y | Wave spring washer M8 | ||
| 13 | 2 | B081205Y | Hex head bolt M8x120 | ||
| 14 | 1 | B08707Y | Allen bolt M8x70 | ||
| 15 | 2 | R082Y | Washer | ||
| 16 | 2 | R085Y | Wave spring washer M8 | ||
| 17 | 2 | B08165YT | Hex head bolt M8x16 | ||
| 18 | 1 | R082Y | Washer | ||
| 19 | 1 | R085Y | Wave spring washer M8 | ||
| 20 | 1 | B08165YT | Hex head bolt M8x16 | ||
| 21 | 1 | 16-5143 | Protection plate | ||
| 22 | 4 | R065Y | Wave spring washer M6 | ||
| 23 | 4 | B06165YT | Hex head bolt M6x16 | ||
| 24 | 1 | 22-22217 | Shield VD4 | 68,00 kr. | |
| 25 | 1 | R065Y | Wave spring washer M6 | ||
| 26 | 1 | STM1024 | Bolt | 15,00 kr. |
