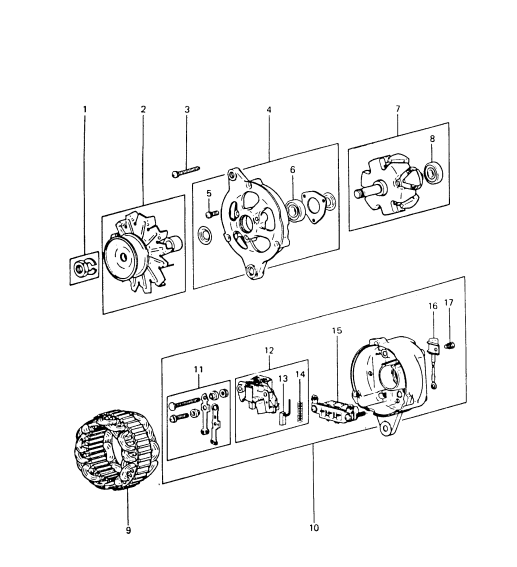

Dynamo Vetus M3.10
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM3261 | Moer | ||
| 2 | 1 | STM3262 | Pulley | ||
| 3 | 1 | STM3263 | Bolt | ||
| 4 | 1 | STM3264 | Bracket | ||
| 5 | 1 | STM3265 | Bolt | ||
| 6 | 1 | STM3266 | Bearing | ||
| 7 | 1 | STM3247 | Rotor | ||
| 8 | 1 | STM3267 | Bearing | ||
| 9 | 1 | STM3246 | Stator | ||
| 10 | 1 | STM3245 | Bracket | ||
| 11 | 1 | STM3268 | Terminal | ||
| 12 | 1 | STM3269 | Regulator | ||
| 13 | 1 | STM3270 | Brush | ||
| 14 | 1 | STM3271 | Spring | ||
| 15 | 1 | STM3273 | Rectifier assy | 920,00 kr. | |
| 16 | 1 | STM3274 | Capacitor | ||
| 17 | 1 | STM3275 | Bolt | ||
| 1 - 17 | STM1655 | Alternator 35 Amp. | 2.324,00 kr. |
