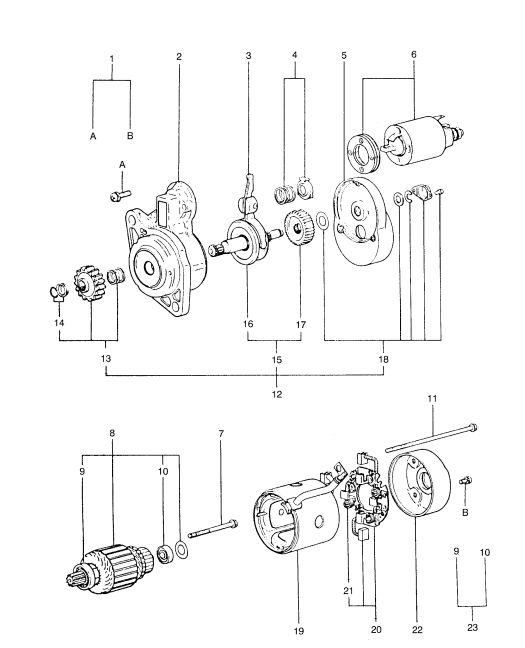

Startermotor Vetus M3.10 M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM3276 | Bolt | ||
| 2 | 1 | STM3277 | Bracket | ||
| 3 | 1 | STM3278 | Lever | ||
| 4 | 1 | STM3279 | Spring | ||
| 5 | 1 | STM3280 | Bracket | ||
| 6 | 1 | STM3217 | Relay | ||
| 7 | 1 | STM3281 | Bolt | ||
| 8 | 1 | STM3213 | Armature | ||
| 9 | 1 | STM3282 | Bearing | ||
| 10 | 1 | STM3283 | Bearing | ||
| 11 | 1 | STM3284 | Bolt | ||
| 12 | 1 | STM3210 | Shaft | ||
| 13 | 1 | STM3212 | Pinion set | 581,00 kr. | |
| 14 | 1 | STM3285 | Stopper set | ||
| 15 | 1 | STM3211 | Gear set | ||
| 16 | 1 | STM3286 | Shaft | ||
| 17 | 1 | STM3287 | Gear | ||
| 18 | 1 | STM3288 | Cover set | ||
| 19 | 1 | STM3214 | Yoke | ||
| 20 | 1 | STM3215 | Brush holder | ||
| 21 | 1 | STM3216 | Spring | ||
| 22 | 1 | STM3289 | Bracket | ||
| 23 | 1 | STM3290 | set Service kit | ||
| 1 - 23 | STM2762 | Starter 12V M3.10/4.14 | 2.421,00 kr. |
