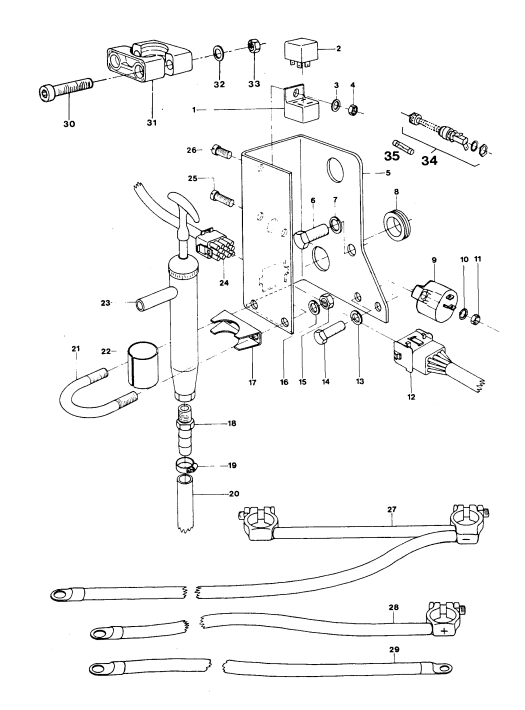

Wiring support Vetus M3.10 M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9052 | Connector for relais (bj516) | 27,00 kr. | |
| 2 | 1 | STM9050 | Relay 12V 40 Amp single pole change over contact | 109,50 kr. | |
| 3 | 1 | STM1707 | Washer | ||
| 4 | 1 | STM1705 | Nut | ||
| 5 | 1 | STM9051 | Wiring support | ||
| 6 | 1 | STM9060 | Bolt | ||
| 7 | 1 | STM4014 | Washer | 15,00 kr. | |
| 8 | 1 | STM9061 | Rubber transmit-tube bow-propeller nr. da 160/220/3 | 10,00 kr. | |
| 9 | 1 | STM9054 | Fuse | ||
| 10 | 2 | STM1707 | Washer | ||
| 11 | 2 | STM1705 | Nut | ||
| 12 | 1 | STM9055 | Engine wiring | ||
| 13 | 2 | STM1056 | Washer | ||
| 14 | 2 | STM4055 | Bolt TAPBOUT 933 ELVZ M8X 16 KB | 13,00 kr. | |
| 15 | 2 | STM2005 | Nut M8 | 12,00 kr. | |
| 16 | 2 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 17 | 1 | STM9206 | Clamp | ||
| 18 | 1 | STM9202 | Hose pillar | 39,00 kr. | |
| 19 | 2 | STM3056 | Hose clamp | 18,00 kr. | |
| 20 | 1 | STM9510 | 0,275 x 3377 Hose | ||
| 21 | 1 | STM9206 | Clamp | ||
| 22 | 1 | STM9207 | Bush | ||
| 23 | 1 | STM9201 | Sump pump | ||
| 24 | 1 | STM9056 | Extension lead 2 m brown | ||
| 25 | 2 | STM9062 | Bolt | 13,50 kr. | |
| 26 | 1 | STM9063 | Bolt --> B05105YT | 13,50 kr. | |
| 27 | 1 | STM9057 | Cable black - | ||
| 28 | 2 | STM9058 | Cable red + | ||
| 29 | 1 | STM9059 | Cable red | ||
| 30 | 2 | STM9208 | Allen screw M6x45 | ||
| 31 | 1 | STM9209 | Coupling | ||
| 32 | 2 | STM1025 | Wave washer M6 | 14,00 kr. | |
| 33 | 2 | STM3260 | Nut (DIN934) | 14,00 kr. | |
| 34 | 1 | STM9184 | Fuse holder engine M2/M3 M2/M3 | 133,50 kr. | |
| 35 | 1 | STM9185 | Kera Fuse 10A 6.3x32mm slow FEINSICHER. KERAM.-6,3X32-MDA10A-TRAEGE | 50,50 kr. |
