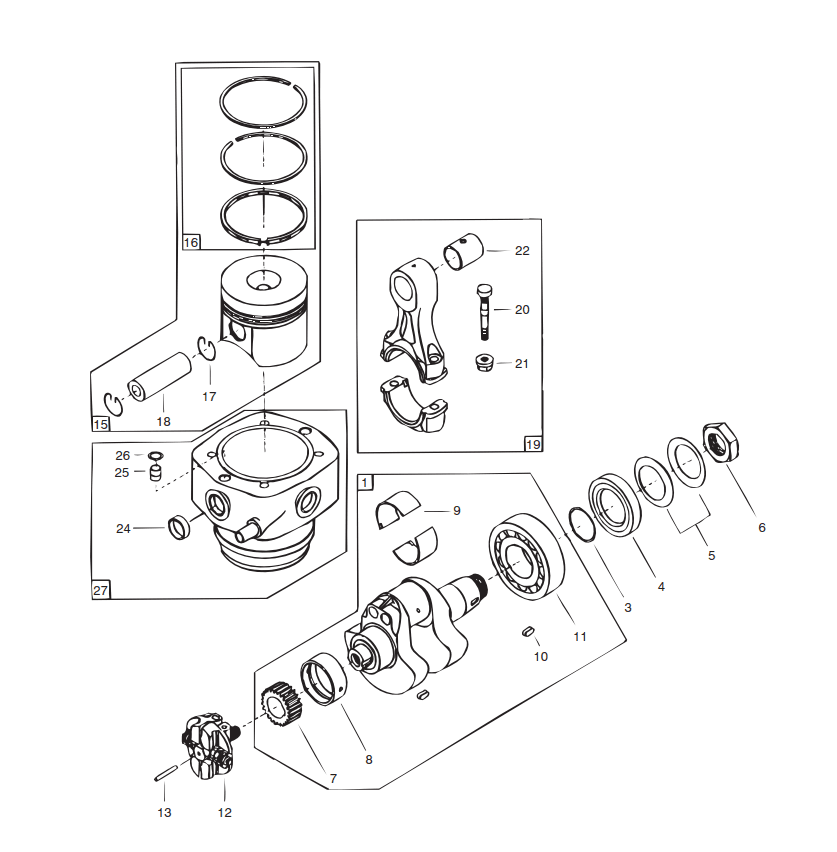

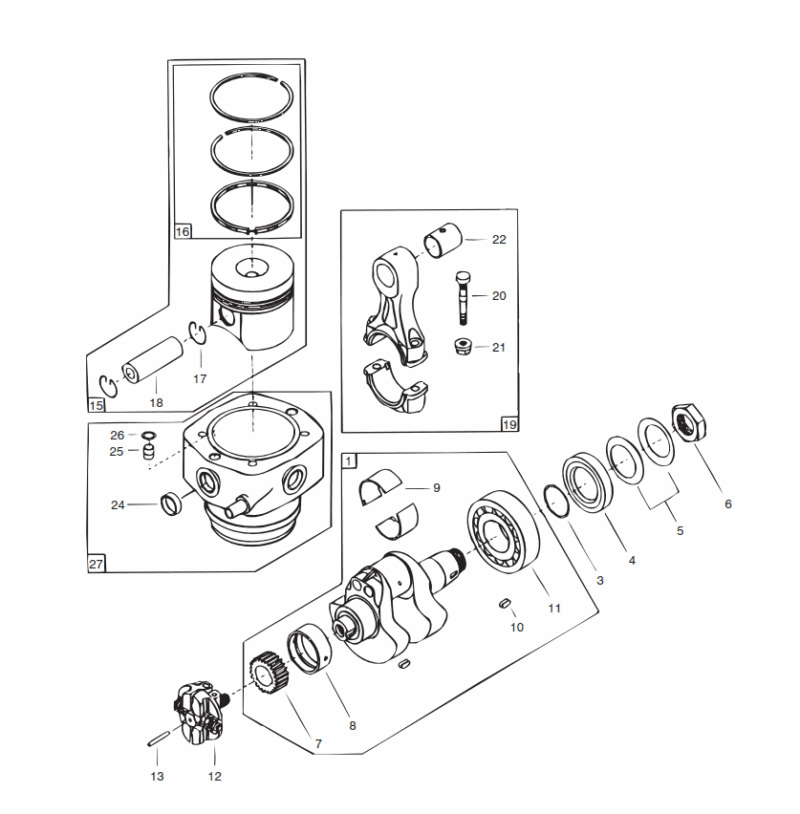

Crankshaft + piston + cylinder Vetus F1.02 F1.03
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | VF20020 | Crankshaft set | ||
| 3 | 1 | VF20021 | Spring lock washer 32x2 | 21,00 kr. | |
| 4 | 1 | VF20022 | Washer | 349,00 kr. | |
| 5 | 2 | VF20023 | Disc spring | 24,00 kr. | |
| 6 | 1 | VF20024 | Nut | 58,00 kr. | |
| 7 | 1 | VF20025 | Gearwheel | ||
| 8 | 1 | VF20026 | Bearing bush | 387,00 kr. | |
| 8 | 1 | VF20027 | Bearing bush undersize 0.25 | 436,00 kr. | |
| 8 | 1 | VF20028 | Bearing bush undersize 0.50 | ||
| 9 | 1 | VF20029 | Bearing shell | 194,00 kr. | |
| 9 | 1 | VF20030 | Bearing shell undersize 0.25 | 291,00 kr. | |
| 9 | 1 | VF20031 | Bearing shell undersize 0.50 | ||
| 10 | 2 | VF20032 | Key 6x4x12 | 11,00 kr. | |
| 11 | 1 | VF20033 | Bearing | ||
| 12 | 1 | VF20034 | Regulator d5042 3000emin-1m5 | 1.985,00 kr. | |
| 12 | 1 | VF20035 | Regulator D5099 2000 min-1B5 | ||
| 12 | 1 | VF20036 | Regulator D5425 3000 min-1D5 | ||
| 12 | 1 | VF20037 | Regulator D5195 3600Emin-1N7 | ||
| 13 | 1 | VF20038 | Pin 4x27,8 | 19,00 kr. | |
| 15 | 1 | VF20039 | Piston | ||
| 16 | 1 | VF20040 | Piston springs set | ||
| 17 | 2 | VF20041 | Circlip A2 2x1.5 | ||
| 18 | 1 | VF20042 | Piston pin | 242,00 kr. | |
| 19 | 1 | VF20043 | Rod | ||
| 20 | 2 | VF20044 | Bolt | 68,00 kr. | |
| 21 | 2 | VF20082 | Nut | ||
| 22 | 1 | VF20046 | Bush | 58,00 kr. | |
| 24 | 4 | VF20076 | Plug | 39,00 kr. | |
| 25 | 2 | VF20048 | Cylinder | ||
| 26 | 2 | VF20049 | Circlip 10x2.2 | ||
| 27 | 1 | VF20050 | Cylinder complete |
