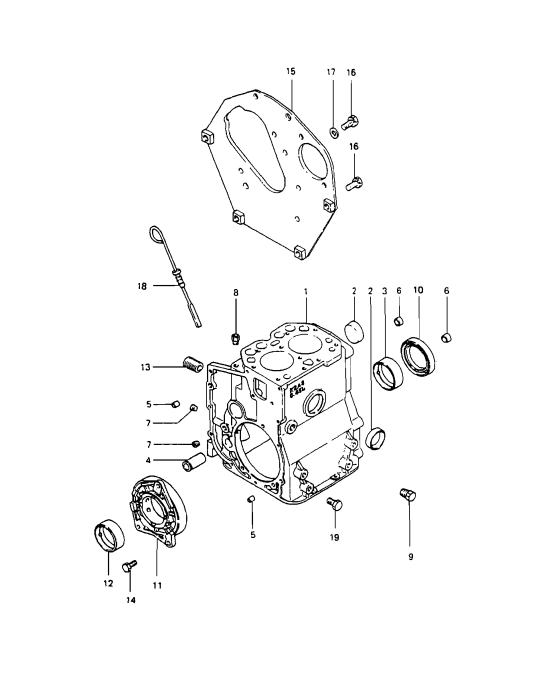

Crankcase VETUS M2.05
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM3529 | Cylinder block M2.05 | ||
| 2 | 2 | STM3530 | Plug expansion 40 mm | ||
| 3 | 1 | STM3531 | Crankshaft bearing standard | ||
| 3 | 1 | STM3532 | Crankshaft bearing 0,25 see stm3543 | 232,00 kr. | |
| 3 | 1 | STM3533 | Crankshaft bearing 0,50 US | ||
| 3 | 1 | STM3534 | Crankshaft bearing 0,75 US | ||
| 4 | 1 | STM3535 | Governor shaft M2.05 | ||
| 5 | 2 | STM3536 | Bush 6x9 | ||
| 6 | 2 | STM3537 | Bush 10x9 | ||
| 7 | 1 | STM3538 | Plug 1/8" npt | 15,00 kr. | |
| 8 | 1 | STM3539 | Nipple connector | 17,00 kr. | |
| 9 | 1 | STM2513 | Plug | 39,00 kr. | |
| 10 | 1 | STM3540 | Oil seal | ||
| 11 | 1 | STM3541 | Housing bearing M2.05 | ||
| 12 | 1 | STM3542 | Bearing std. | 174,00 kr. | |
| 12 | 1 | STM3543 | Bearing 0,25 US | ||
| 12 | 1 | STM3544 | Bearing 0,5 us see stm3533 | 203,00 kr. | |
| 12 | 1 | STM3545 | Bearing 0,75 US | ||
| 13 | 1 | STM3546 | Shaft oil filter m2.05 | 145,00 kr. | |
| 14 | 1 | STM3547 | Bolt M8x20 | 11,00 kr. | |
| 15 | 1 | STM3548 | Plate rear m2.05 | 3.632,00 kr. | |
| 16 | 1 | STM3549 | Bolt washer M10x25 | ||
| 17 | 1 | STM3550 | Washer | ||
| 18 | 1 | STM3551 | Gauge oil level m2.05 | 153,00 kr. | |
| 19 | 4 | STM3552 | Bolt M10x20 |
