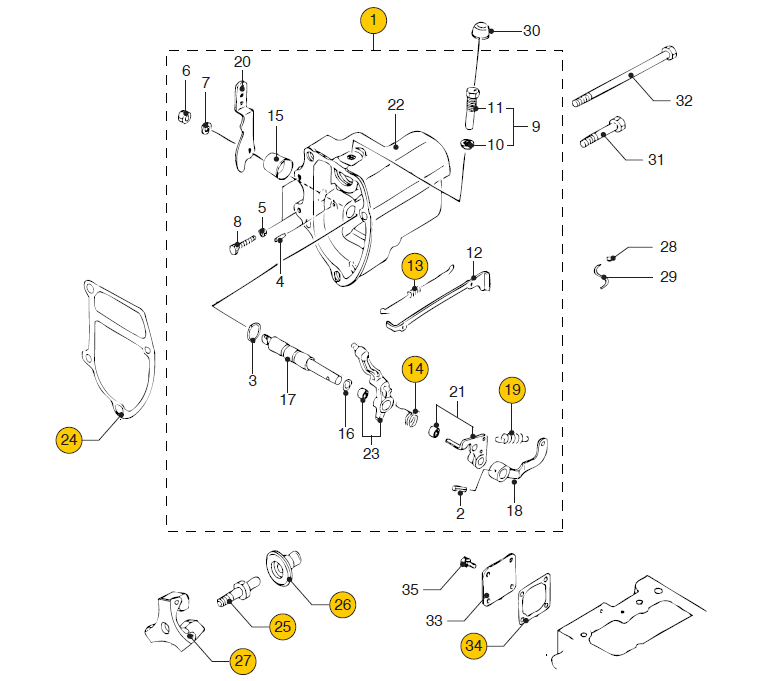

Regulator Vetus M415 M417 M435 M445
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM7895 | Regulator CPL.-M4,15/17 | 5.375,00 kr. | |
| 2 | 1 | STM7896 | Pin | ||
| 3 | 1 | STM7897 | O-ring | ||
| 4 | 1 | STM7898 | Pin | ||
| 5 | 2 | STM7899 | Nut | ||
| 6 | 1 | STM7900 | Nut | ||
| 7 | 1 | STM7901 | Spring washer | ||
| 8 | 2 | STM7902 | Bolt | ||
| 9 | 1 | STM7903 | Screw+nut | ||
| 10 | 1 | STM7904 | Nut | ||
| 11 | 1 | STM7905 | Screw | ||
| 12 | 1 | STM7906 | Tie rod | ||
| 13 | 1 | STM7907 | Spring | 63,00 kr. | |
| 14 | 1 | STM7908 | Spring | ||
| 15 | 1 | STM7909 | Cover | ||
| 16 | 1 | STM7910 | Shim | ||
| 17 | 1 | STM7911 | Shaft | ||
| 18 | 1 | STM7912 | Lever | ||
| 19 | 1 | STM7913 | Spring in regulator M4.15/17 | 581,00 kr. | |
| 20 | 1 | STM7914 | Lever | ||
| 21 | 1 | STM7915 | Lever | ||
| 22 | 1 | STM7916 | Case | ||
| 23 | 1 | STM7917 | Lever | ||
| 24 | 1 | STM7918 | Gasket | 58,00 kr. | |
| 25 | 1 | STM7919 | Shaft | 386,00 kr. | |
| 26 | 1 | STM7920 | Sleeve | 266,00 kr. | |
| 27 | 1 | STM7921 | Weight | 328,00 kr. | |
| 28 | 1 | STM2718 | Seal metal | ||
| 29 | 1 | STM7922 | Sealing wire | ||
| 30 | 1 | STM7923 | Cap | ||
| 31 | 3 | STM7924 | Bolt | ||
| 32 | 1 | STM7925 | Bolt | ||
| 33 | 1 | STM7926 | Cover | ||
| 34 | 1 | STM2734 | Gasket | 39,00 kr. | |
| 35 | 4 | STM7928 | Bolt |
