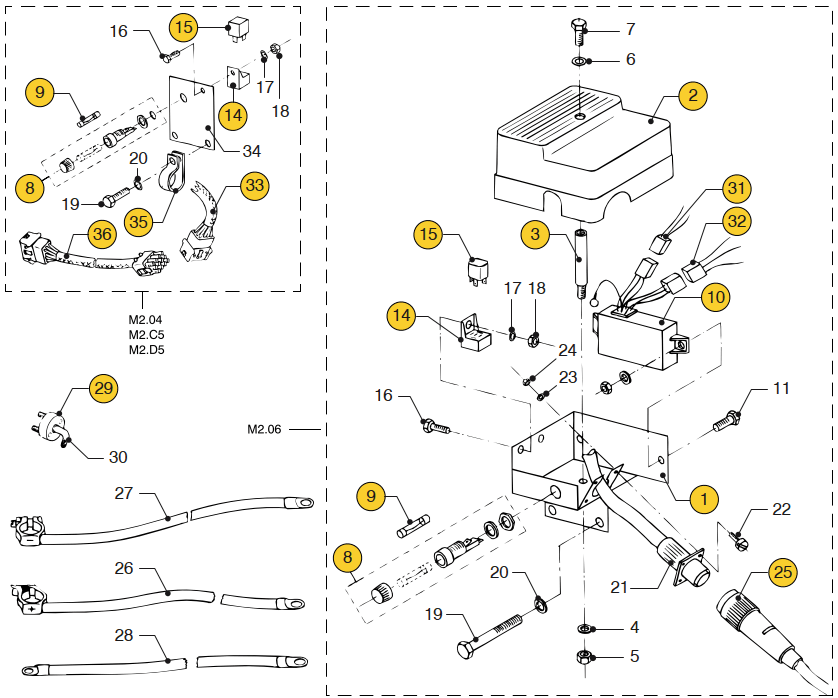

Terminal box, 2001 <- Vetus M2.04 M2.06 M2.C5 M2.D5
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM6134 | Wiring support | ||
| 2 | 1 | STM6135 | Lid | 55,00 kr. | |
| 3 | 1 | STM6146 | Spacer | 46,00 kr. | |
| 4 | 1 | STM1707 | Washer | ||
| 5 | 1 | STM1705 | Nut M5 | ||
| 6 | 1 | STM1025 | Wave washer M6 | 14,00 kr. | |
| 7 | 1 | STM9063 | Bolt --> B05105YT | 13,50 kr. | |
| 8 | 1 | STM9184 | Fuse holder engine M2/M3 M2/M3 | 133,50 kr. | |
| 9 | 1 | STM9185 | Kera Fuse 10A 6.3x32mm slow FEINSICHER. KERAM.-6,3X32-MDA10A-TRAEGE | 50,50 kr. | |
| 10 | 1 | STM6253 | Stoptimer | 2.200,50 kr. | |
| 11 | 2 | STM1030 | Bolt M6x20 | 14,00 kr. | |
| 12 | 2 | CT40029 | Spring washer M6 DIN9780 | 14,00 kr. | |
| 13 | 2 | STM3260 | Nut (DIN934) | 14,00 kr. | |
| 14 | 1 | STM9052 | Connector for relais (bj516) | 27,00 kr. | |
| 15 | 1 | STM9050 | Relay 12V 40 Amp single pole change over contact | 109,50 kr. | |
| 16 | 1 | STM9063 | Bolt --> B05105YT | 13,50 kr. | |
| 17 | 1 | STM1707 | Washer | ||
| 18 | 1 | STM1705 | Nut M5 | ||
| 19 | 2 | STM3355 | Bolt M8X20 DIN933 | 14,00 kr. | |
| 20 | 2 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 21 | 1 | STM6203 | Engine wiring | ||
| 22 | 4 | STM6145 | Bolt M3x16 | ||
| 23 | 4 | STM6143 | Washer | ||
| 24 | 4 | STM6144 | Nut M3 | ||
| 25 | 1 | STM6222 | Intermediate loom length 2 m (15 pole) | 717,00 kr. | |
| 26 | 1 | STM3714 | + Battery cable | ||
| 27 | 1 | STM3715 | - Battery cable | ||
| 28 | 1 | STM3713 | Intermediate loom | ||
| 29 | 1 | STM3712 | Main switch hella | 216,50 kr. | |
| 30 | 1 | STM3762 | Key | ||
| 31 | 1 | STM6275 | Connector 2p | 22,00 kr. | |
| 32 | 1 | STM6276 | Connector 3p | 23,00 kr. | |
| 33 | 1 | STM6229 | Engine Wiring | ||
| 34 | 1 | STM6231 | Support | ||
| 35 | 1 | STM3066 | Pipe clamp 12,7mm | 14,00 kr. | |
| 36 | 1 | BEDR120 | Connection Cable 2mtr |
