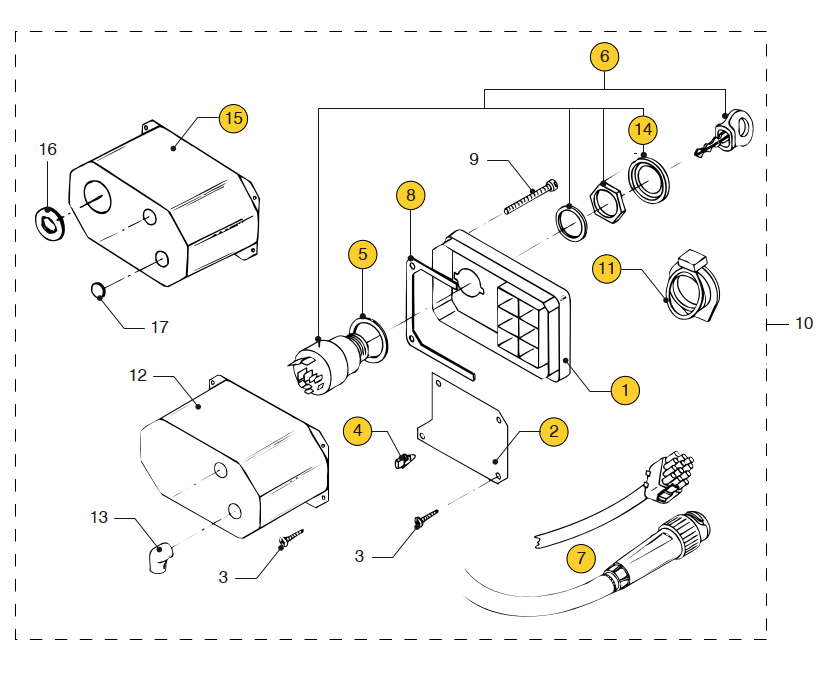

Instrument panel ‘22’ standard 2001 <- Vetus M2.04 M2.06 M2.C5 M2.D5
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9065 | Panel housing "sailb." incl. front plate m2/m3/m4 | 350,00 kr. | |
| 2 | 1 | 08-01363 | PCB panel MP10 incl. LEDs. 12V and 24V DC | 506,50 kr. | |
| 3 | 8 | P2295RKP | Screw | ||
| 4 | 6 | STM9169 | Bulb | ||
| 5 | 1 | STM9172 | Gasket for starter switch | 23,00 kr. | |
| 6 | 1 | STM9215 | Starter-preheat keyswitch with 2 keys | 412,00 kr. | |
| 7 | 1 | STM6211 | Wiring loom m2.06 sailboat panel | 506,50 kr. | |
| 7 | 1 | STM9067 | Panel wiring | ||
| 8 | 1 | STM9068 | Gasket for panel 94x156mm | 38,00 kr. | |
| 9 | 4 | P35254ZKP | Screw | ||
| 10 | 1 | STM6212 | Instr.panel cpl. | ||
| 10 | 1 | STM9064 | Instr.panel cpl. | ||
| 11 | 1 | STM9188 | Cover for starter switch | 66,50 kr. | |
| 12 | 1 | STM9069 | Protective cap | ||
| 13 | 2 | STM9070 | Strain relief | ||
| 14 | 1 | STM9888 | Plastic Cover | 18,50 kr. | |
| 15 | 1 | STM9069 | Protective cap 02-99 -> | ||
| 16 | 1 | STM7222 | Grommet 02-99 -> | ||
| 17 | 2 | STM7254 | Hole plug 02-99 -> |
