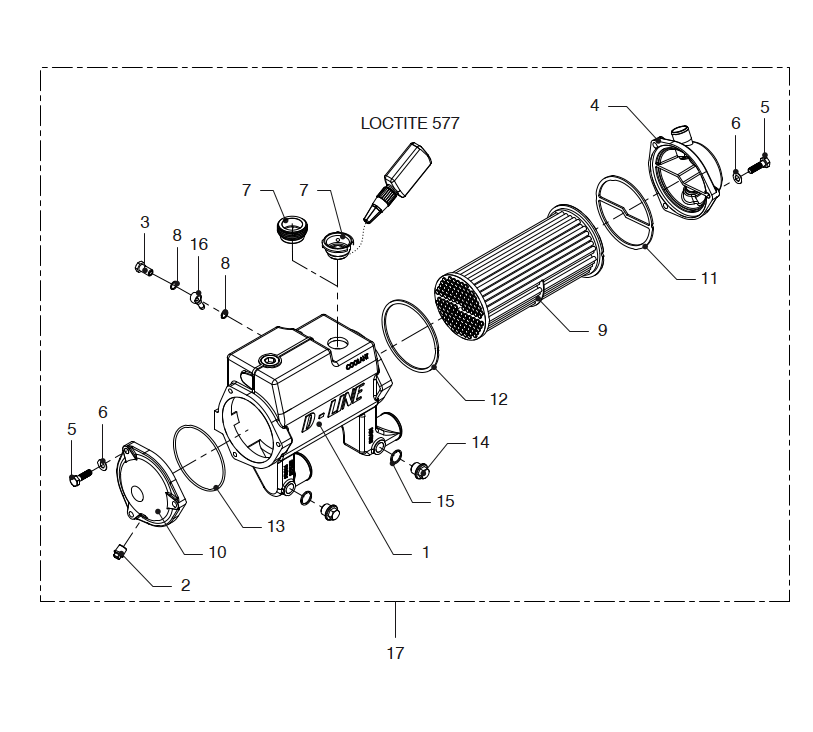

Heat exchanger Vetus VD4.120 VD4.140
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 15-2795 | Heatexchanger housingVD4 | 4.064,00 kr. | |
| 2 | 1 | 16-5034 | Plug G3/8 | ||
| 3 | 1 | 16-5600 | Banjo bolt M12x1,75 | ||
| 4 | 1 | 16-6931 | Connection cover heat exchanger VD4/VD6 | 1.933,00 kr. | |
| 5 | 6 | B10355Y | Hex head bolt M10x35 | ||
| 6 | 6 | R105Y | Wave spring washer M10 | ||
| 7 | 1 | STM1515 | Filler neck | ||
| 7 | 1 | 18-14649 | Filler neck EXCL. CAP For pressure cap 18-14715 (M,H) or 18-14716 (D) | 157,00 kr. | |
| 8 | 2 | STM7056 | Copper Washer M12 | 18,50 kr. | |
| 9 | 1 | 17-10978 | Tube stack VD4 | 5.983,50 kr. | |
| 10 | 1 | STM8305 | Return cover 4 + 6 cylinder | 920,50 kr. | |
| 11 | 1 | STM8307 | Seal | 67,50 kr. | |
| 12 | 1 | STM8308 | Seal | 90,00 kr. | |
| 13 | 1 | STM8309 | O-seal | 72,00 kr. | |
| 14 | 2 | STM8314 | Plug 910 Ms G1/2" KB | 60,00 kr. | |
| 15 | 2 | STM8315 | Seal washer g1/2 RG-SEAL-DIN7603-CU-A-21X26X1,5 | 14,00 kr. | |
| 16 | 1 | STM9262 | Banjo eye 3/8" | 49,50 kr. | |
| 17 | 1 | 16-7473 | Heat exchanger cpl. |
