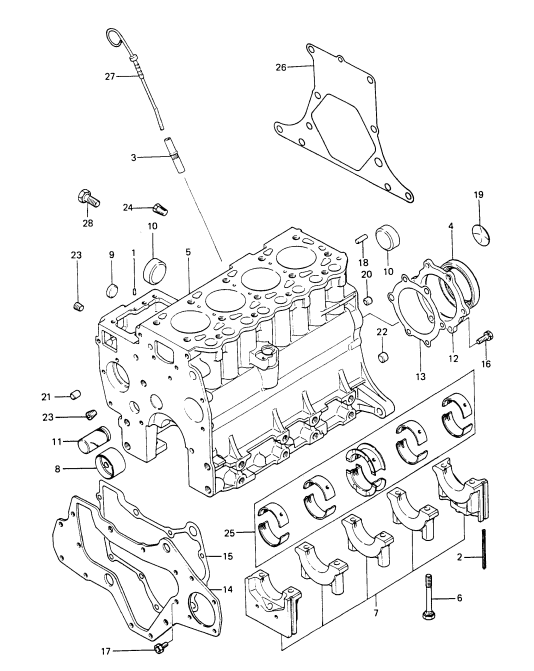

Cylinder block Vetus M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 2 | STM2492 | Dowel pin | ||
| 2 | 4 | STM2493 | Seal side | 59,00 kr. | |
| 3 | 1 | STM3387 | Guide oil level gauge M4 | ||
| 4 | 1 | STM2495 | Oil seal | 145,00 kr. | |
| 5 | 1 | STM3388 | M4 Cylinderblock | ||
| 6 | 10 | STM2497 | Bolt | 54,00 kr. | |
| 8 | 1 | STM2501 | Bush | 83,00 kr. | |
| 9 | 2 | STM2537 | Cap sealing 22,2 mm | 40,50 kr. | |
| 10 | 3 | STM2538 | Cap sealing | 37,00 kr. | |
| 11 | 1 | STM2502 | Shaft idler | ||
| 12 | 1 | STM2503 | Holder for rear crankshaft oil seal M3.10/M4.14 | 161,00 kr. | |
| 13 | 1 | STM2504 | Gasket | 98,50 kr. | |
| 14 | 1 | STM2505 | Plate | ||
| 15 | 1 | STM2506 | Gasket | 103,50 kr. | |
| 16 | 6 | STM1610 | Bolt M8X25 DIN933 ---> B08255YT | 19,00 kr. | |
| 17 | 3 | STM7010 | Allen screw SS DIN912 | 18,50 kr. | |
| 18 | 1 | STM2507 | Dowel pin | 18,50 kr. | |
| 19 | 1 | STM2508 | Plug | 37,00 kr. | |
| 20 | 2 | STM2509 | Bush | 13,50 kr. | |
| 21 | 2 | STM2510 | Bush | ||
| 22 | 1 | STM2511 | Bush | ||
| 23 | 3 | STM2512 | Plug | ||
| 24 | 1 | STM2513 | Plug | 36,00 kr. | |
| 25 | 1 | STM3389 | Crankshaft bearings STD M4.15/17/35/45/55/56 | 966,50 kr. | |
| 25 | 1 | STM3390 | Crankshaft bearing shells 0,25 os M4.15/17/35/45/55/56 | 718,50 kr. | |
| 25 | 1 | STM3391 | Bearing set 0.50 OS | ||
| 25 | 1 | STM3392 | Bearing set 0,75 os M4.15/M4.17 | 437,50 kr. | |
| 26 | 1 | STM3393 | Gasket | 112,50 kr. | |
| 27 | 1 | STM2516 | Dipstick | 92,00 kr. |
