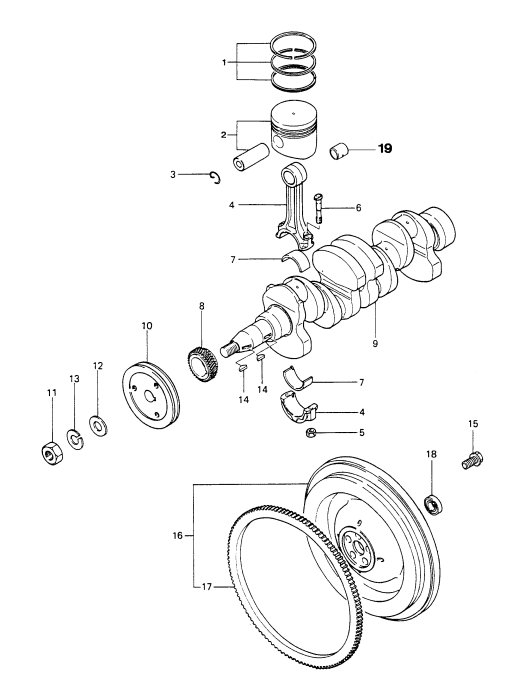

Crankshaft Vetus M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 4 | STM3430 | Piston rings STD M4.14 | 782,50 kr. | |
| 1 | 4 | STM3431 | Piston rings 25 os M4.14 | 690,50 kr. | |
| 1 | 4 | STM3432 | Piston rings 0.50 os M4.14 | 690,50 kr. | |
| 1 | 4 | STM3433 | Piston spring set 0.75 OS | ||
| 2 | 4 | STM3434 | Piston and pin std | 1.795,00 kr. | |
| 2 | 4 | STM3435 | Piston and pin 0,25 os | 1.196,50 kr. | |
| 2 | 4 | STM3436 | Piston and pin 0,5 os | 1.795,00 kr. | |
| 2 | 4 | STM3437 | Piston and pin 0,75 os | 1.150,50 kr. | |
| 3 | 8 | STM3438 | Circlip for piston pin M3.10/M4.14 | 138,00 kr. | |
| 4 | 4 | STM3439 | Con rod m4.14 | 1.749,00 kr. | |
| 5 | 8 | STM3586 | Nut | ||
| 6 | 8 | STM3585 | Bolt | ||
| 7 | 4 | STM3441 | Bearing set std | 204,50 kr. | |
| 7 | 4 | STM3442 | Bearingset 0,25 os | 188,00 kr. | |
| 7 | 4 | STM3443 | Bearing set 0.50 OS | ||
| 7 | 4 | STM3444 | Bearing set 0,75 os | 83,00 kr. | |
| 8 | 1 | STM3445 | Crankshaft gear m4.14 | 391,00 kr. | |
| 9 | 1 | STM3446 | Crankshaft M4.14 | ||
| 10 | 1 | STM3447 | Crankshaft pulley m4 | 417,50 kr. | |
| 11 | 1 | STM2566 | Nut | 16,00 kr. | |
| 12 | 1 | STM2567 | Washer | ||
| 13 | 1 | STM2568 | Spring washer | 13,50 kr. | |
| 14 | 2 | STM2569 | Key | 24,00 kr. | |
| 15 | 5 | STM3448 | Bolt | 36,00 kr. | |
| 16 | 1 | STM2572 | Flywheel M3.10/M4.14 | 1.937,00 kr. | |
| 17 | 1 | STM2573 | Gear ring | 1.392,00 kr. | |
| 18 | 1 | STM2574 | Ball bearing | 69,00 kr. | |
| 19 | 4 | STM2611 | Bearing | 69,00 kr. |
