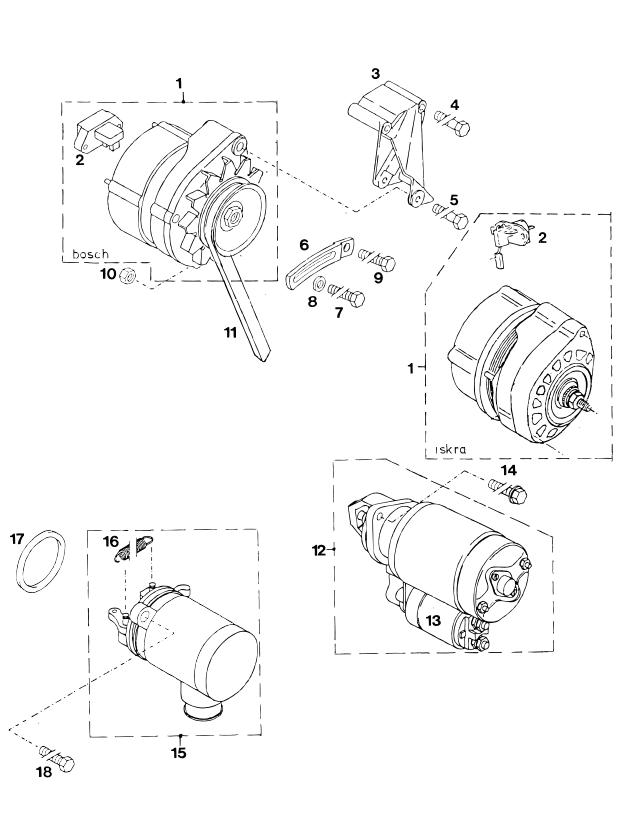

Starter + Alternator Vetus D4.29 DT4.29
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM8781 | Alternator 12V-95A 1p Bosch | ||
| 1 | 1 | STM8660 | Alternator 12V/95A unpainted 1 pole D(T)4.29/DET,DTA 43/44/64/66/67/VH4 | 2.919,00 kr. | |
| 1 | 1 | STM8661 | Dynamo 12V/95A double pole | 1.706,50 kr. | |
| 1 | 1 | STM8662 | Dynamo 24V/55A single pole | 2.739,00 kr. | |
| 1 | 1 | STM8663 | Dynamo 24V/55A double pole | 1.661,50 kr. | |
| 2 | 1 | VD40017 | Voltage regulator | 1.933,00 kr. | |
| 2 | 1 | STM8666 | Voltage regulator 14V-95 A 1-pole | 508,00 kr. | |
| 2 | 1 | STM8667 | Voltage regulator 14V-95A 2p Iskra 2p Iskra | ||
| 2 | 1 | STM8668 | Voltage regulator 28V-55A 1p | 391,00 kr. | |
| 2 | 1 | STM8669 | Voltage regulator 28V-55A 2p Iskra 2p Iskra | ||
| 3 | 1 | VD40102 | Support | ||
| 4 | 1 | VD40103 | Bolt | 64,50 kr. | |
| 5 | 1 | VD40104 | Bolt | ||
| 6 | 1 | VD40105 | Clamping strap | ||
| 7 | 1 | VD40106 | Bolt | ||
| 8 | 1 | VD40107 | Washer | ||
| 9 | 1 | VD40108 | Bolt | ||
| 10 | 1 | VD40109 | Nut | ||
| 11 | 1 | STM6023 | V-belt dynamo D(T)4.29 extra dynamo DT(A)43-64-67 | 128,50 kr. | |
| 12 | 1 | STM8824 | Starter 12V-2.2kW 1p Bosch 04-2001 | ||
| 13 | 1 | STM8825 | Bosch Relay 12V 1p Bosch | ||
| 13 | 1 | STM8678 | Relay 12V 1p Iskra | ||
| 13 | 1 | STM8820 | Relay 12V 2p Iskra | ||
| 13 | 1 | STM8679 | Relay 24V 1p Iskra | ||
| 13 | 1 | STM8821 | Solenoid 24 V 2 pole for STM8657 | 607,50 kr. | |
| 14 | 3 | VD40039 | Hexagon bolt M10x55 | 48,50 kr. | |
| 15 | 1 | STM8672 | Stop magnet 12V-3,4V d(t)4.29 | 5.293,00 kr. | |
| 15 | 1 | STM8673 | Shutdown device 24V | 2.623,50 kr. | |
| 16 | 1 | VD40110 | Spring | ||
| 17 | 1 | VD40111 | O-seal | ||
| 18 | 2 | VD40112 | Bolt |
