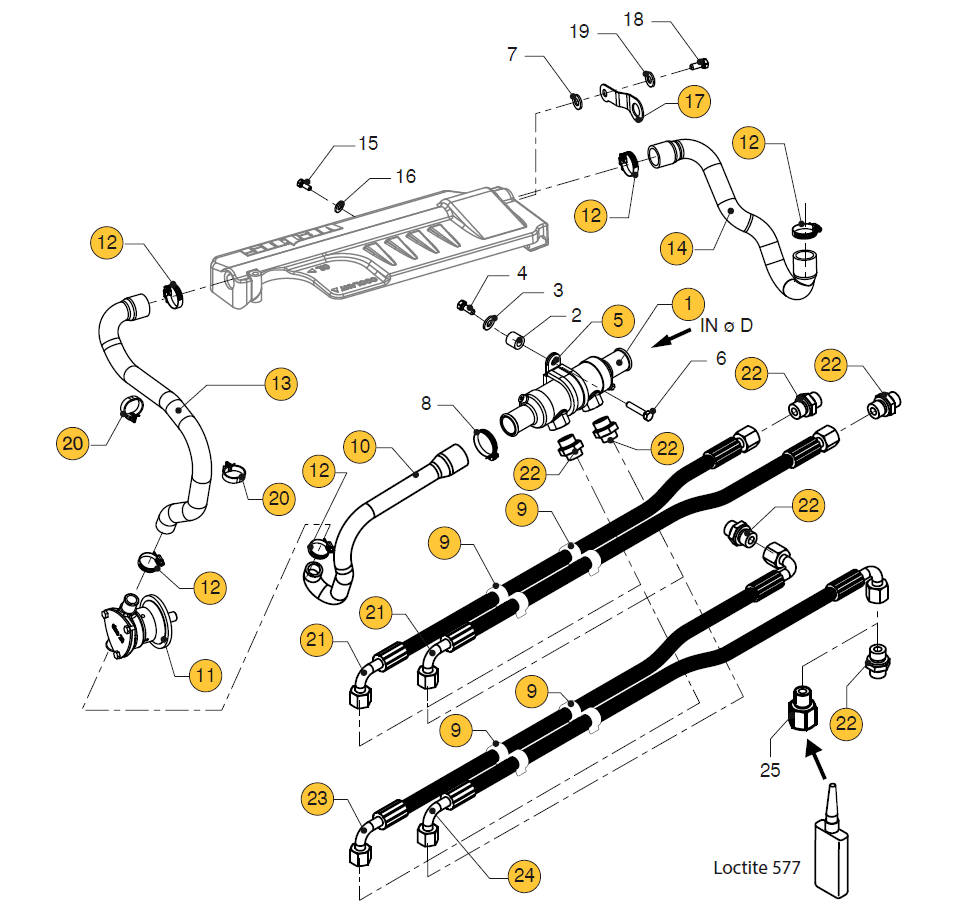

Sea water pump, intercooling/hydraulic gearbox Vetus M435 M445
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | 08-01316 | oil cooler DC050-5401-1 | 3.536,50 kr. | |
| 2 | 1 | STM8804 | Bush l=18 | ||
| 3 | 1 | STM2022 | Wave spring washer M10 | ||
| 4 | 1 | STM4018 | Nut | 14,00 kr. | |
| 5 | 1 | CT30061 | Pipe and fastening clamp with straps PIPCLMP-RSGU-EPDM-BLACK-W25MM-D48MM | 55,00 kr. | |
| 6 | 1 | STM6560 | Bolt M10x50 | 10,00 kr. | |
| 7 | 1 | 08-01372 | Washer | ||
| 8 | 1 | HCS25 | Spændebånd i rustfrit stål - 25-40 mm | 29,00 kr. | |
| 9 | 2 | VD60090 | Hose retainer | 57,50 kr. | |
| 10 | 1 | 08-01319 | Hose | 368,00 kr. | |
| 11 | 1 | STM7630 | Raw water pump 30 L/min. M4.15/17/35/45 | 2.155,50 kr. | |
| 12 | 5 | HCS16 | Spændebånd i rustfrit stål - 16-27 mm | 24,00 kr. | |
| 13 | 1 | 08-01314 | Hose | 184,00 kr. | |
| 14 | 1 | 08-01315 | Hose | 136,00 kr. | |
| 15 | 1 | STM8567 | Bolt M6x10 ss | 13,50 kr. | |
| 16 | 1 | STM101 | Wave spring washer M8 | ||
| 17 | 1 | STM7710 | Lifting eye | 41,50 kr. | |
| 18 | 1 | STM9003 | Bolt M10x1,5x25 | ||
| 19 | 1 | STM2022 | Wave spring washer M10 | ||
| 20 | 2 | 08-01320 | Clamp | 14,00 kr. | |
| 21 | 2 | CT50079 | Hose oil cooler l=550mm | 207,00 kr. | |
| 22 | 4 | STM3491 | Nipple | 37,00 kr. | |
| 23 | 1 | 08-01450 | Hose L = 590, PRM500 / ZF25 | ||
| 24 | 1 | 08-01451 | Hose L = 690, PRM500 / ZF25 | ||
| 25 | 1 | STM5434 | Nipple M16 male > G3/8 female (Trolling Valve) |
