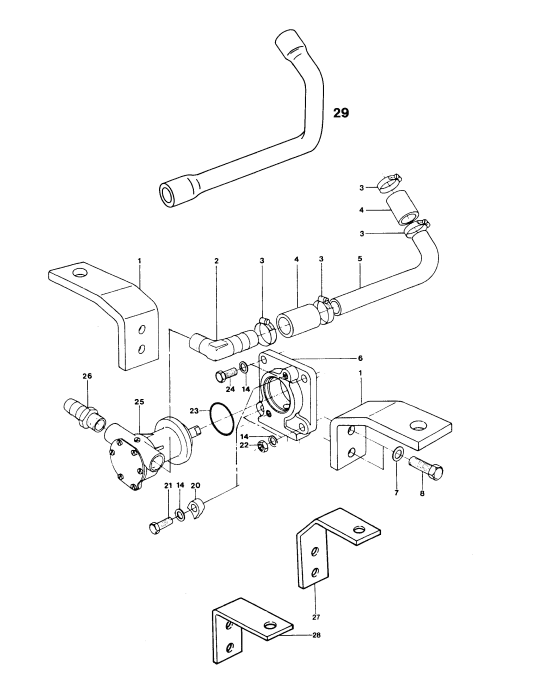

Sea water pump assy Vetus M3.10 M4.14
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 2 | STM6052 | Engine support | 258,00 kr. | |
| 2 | 1 | STM7051 | Knee | 81,00 kr. | |
| 3 | 4 | STM2012 | Hose clamp | 14,00 kr. | |
| 4 | 2 | STM7062 | Hose | ||
| 5 | 1 | STM7052 | Pipe | 83,00 kr. | |
| 6 | 1 | STM8051 | Adaptor (flange) | 184,00 kr. | |
| 7 | 4 | STM4056 | Washer | ||
| 8 | 4 | STM7053 | Bolt | 32,00 kr. | |
| 14 | 2 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 20 | 2 | STM7058 | Clamp plate | 36,50 kr. | |
| 21 | 2 | STM7059 | SCR-HEX-ISO4017-8.8-WS13-(A2K)-M8X30 M8X30 DIN933 | 15,00 kr. | |
| 22 | 2 | STM2005 | Nut M8 | 12,00 kr. | |
| 23 | 1 | STM7060 | O-ring between STM8050 pump and flange STM8051 M3.10/M4.14 | 27,50 kr. | |
| 24 | 2 | STM3355 | Bolt M8X20 DIN933 | 14,00 kr. | |
| 25 | 1 | STM8050 | Raw water pump M3.10/M4.14 | 2.245,50 kr. | |
| 26 | 1 | STM7061 | Hose pillar | 87,50 kr. | |
| 27 | 2 | STM3496 | Engine supp front high m | 87,50 kr. | |
| 28 | 2 | STM3495 | Engine supporg high | ||
| 29 | 1 | STM3092 | Hose m3+m4 waterpump | 64,50 kr. |
