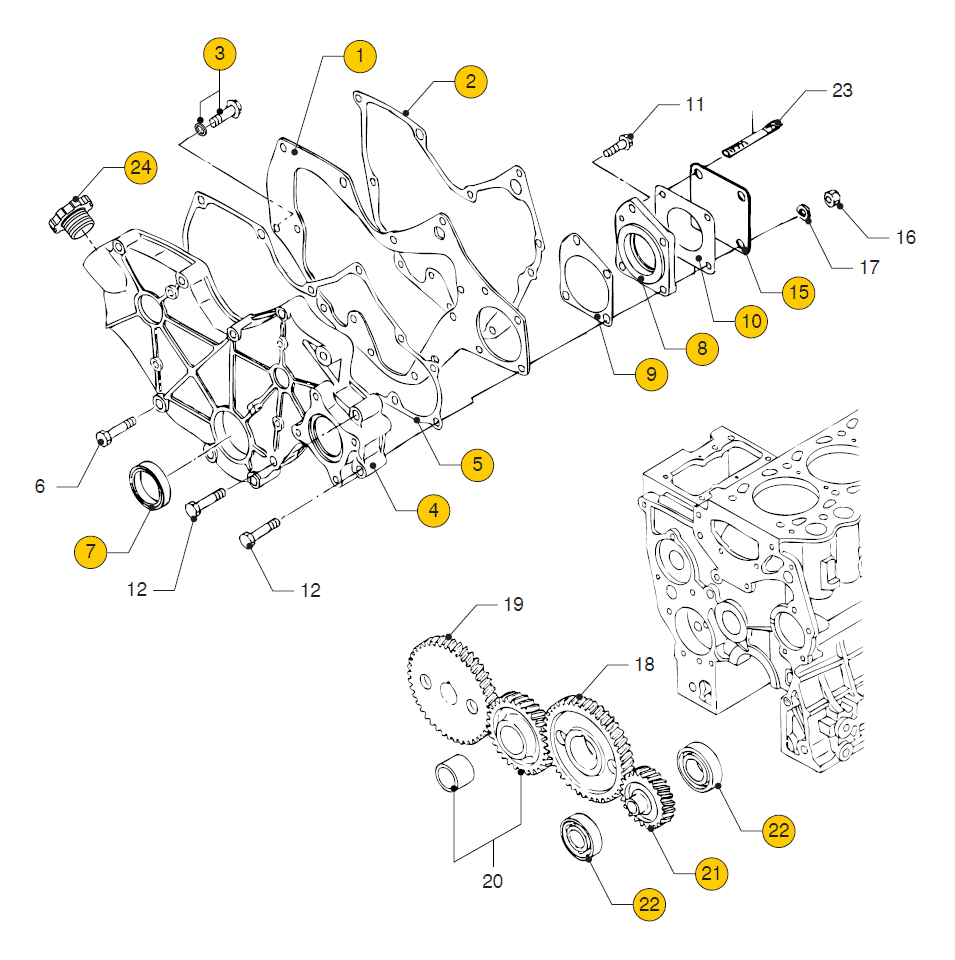

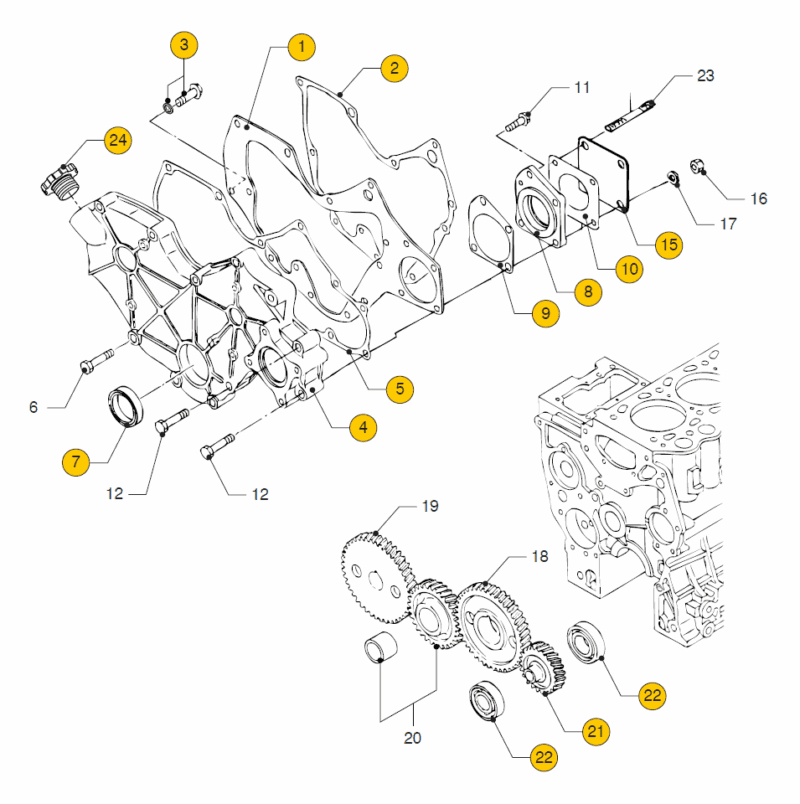

PTO Vetus M415 M417 M435 M445
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM7770 | Plate behind front engine cover M4.15/17/35/45/55/56 | 432,50 kr. | |
| 2 | 1 | STM7771 | Gasket | 141,50 kr. | |
| 3 | 5 | STM7772 | Bolt + Washer | ||
| 4 | 1 | STM7773 | Drive gear cover M4.15/17/35/45/55/56 | 1.392,00 kr. | |
| 5 | 2 | STM7774 | Gasket | 170,50 kr. | |
| 6 | 8 | STM2528 | Bolt | ||
| 7 | 1 | STM2527 | Oil seal front engine M2/M3/M4 | 60,00 kr. | |
| 8 | 1 | STM7776 | Case | 350,00 kr. | |
| 9 | 1 | STM7777 | Gasket | 36,00 kr. | |
| 10 | 2 | STM2526 | Gasket | 38,00 kr. | |
| 11 | 1 | STM7778 | Bolt | ||
| 12 | 1 | STM7779 | Bolt | ||
| 15 | 1 | STM2525 | Cover | 184,00 kr. | |
| 16 | 4 | STM7940 | Nut | ||
| 17 | 4 | STM7941 | Washer | ||
| 18 | 1 | STM7814 | Gear wheel | ||
| 19 | 1 | STM7815 | Gear wheel | ||
| 19 | 1 | STM9998 | Gear wheel M4.17 serial nr. 113342 -> | ||
| 20 | 1 | STM7816 | Gear wheel cpl. | ||
| 21 | 1 | STM7817 | Gear | 911,50 kr. | |
| 22 | 2 | STM7818 | Bearing | 188,50 kr. | |
| 23 | 2 | STM7780 | Stud | ||
| 24 | 1 | STM3912 | Oil fillercap rubber rocker cover M3.09/28/M4.15/17/35/45/55/56 | 137,00 kr. |
