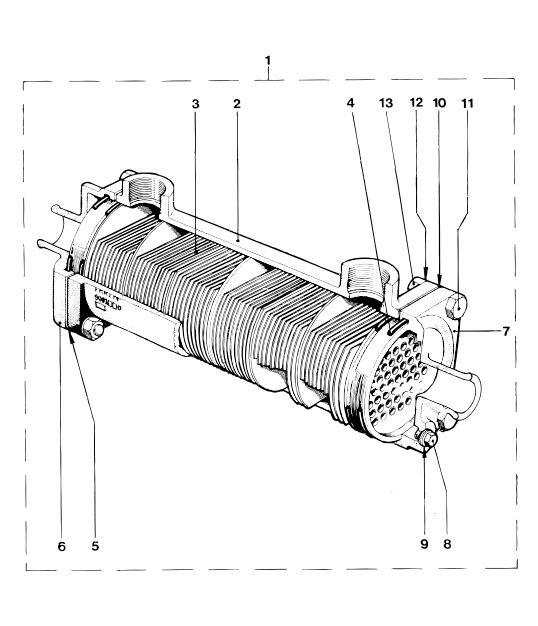

Oilcooler Vetus D4.29 DT4.29
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM8540 | Oilcooler 9” D4.29 | ||
| 1 | 1 | STM8541 | Oilcooler 12" dt4.29 | 10.654,00 kr. | |
| 2 | 1 | STM8630 | Body D4.29 | ||
| 2 | 1 | STM8631 | Body DT4.29 | ||
| 3 | 1 | STM8632 | Tubestack D4.29 | ||
| 3 | 1 | STM8633 | Tubestack DT4.29 | ||
| 4 | 4 | STM8634 | Viton O-ring oil cooler D(T)4.29 D(T)4.29 | 144,00 kr. | |
| 5 | 4 | STM8635 | Washer | ||
| 6 | 1 | STM8636 | Cover | ||
| 7 | 1 | STM8637 | Cover | ||
| 8 | 1 | STM8638 | Plug | 75,00 kr. | |
| 9 | 1 | STM8639 | Dowty washer | 11,00 kr. | |
| 10 | 1 | STM8640 | Lock plate | ||
| 11 | 8 | STM8641 | Bolt hex. hds | 11,00 kr. | |
| 12 | 8 | STM8642 | Washer sping steel | 11,00 kr. | |
| 13 | 8 | STM8643 | Nut |
