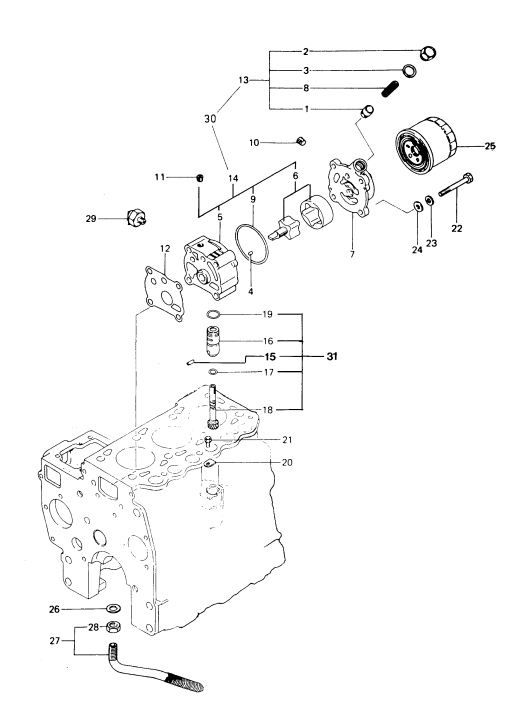

Oil pump Vetus M3.10
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM2647 | Plunger | 32,00 kr. | |
| 2 | 1 | STM2648 | Plug | 14,00 kr. | |
| 3 | 1 | STM2649 | Gasket | 23,00 kr. | |
| 4 | 2 | STM2650 | Dowel pin | 18,50 kr. | |
| 5 | 1 | STM2651 | Body oil pump | 552,50 kr. | |
| 6 | 1 | STM2652 | Rotor assy | ||
| 7 | 1 | STM2653 | Cover oil pump | 449,00 kr. | |
| 8 | 1 | STM2654 | Spring relief | 37,00 kr. | |
| 9 | 1 | STM2655 | O-ring | ||
| 10 | 1 | STM2656 | Plug | ||
| 11 | 1 | STM2657 | Plug 1/8 | ||
| 12 | 1 | STM2658 | Gasket oil pump M3.10/M4.14 | 40,50 kr. | |
| 13 | 1 | STM2659 | Service kit | ||
| 14 | 1 | STM2660 | Oil pump M3.10/M4.14 M3.10/M4.14 | 449,00 kr. | |
| 15 | 1 | STM3427 | Pin | ||
| 16 | 1 | STM3426 | Sleeve | ||
| 17 | 1 | STM2664 | O-ring | 18,50 kr. | |
| 18 | 1 | STM2665 | Gear | ||
| 19 | 1 | STM2666 | O-ring | ||
| 20 | 1 | STM2667 | Locking plate | ||
| 21 | 1 | STM2668 | Bolt | 13,50 kr. | |
| 22 | 1 | STM2669 | Bolt | ||
| 23 | 1 | STM2670 | Washer | 13,50 kr. | |
| 24 | 1 | STM2671 | Washer | 13,50 kr. | |
| 25 | 1 | STM0051 | Oil filter M2/ M3/ M4 | 119,00 kr. | |
| 26 | 1 | STM2672 | Gasket | ||
| 27 | 1 | STM2673 | Screen assy | 126,00 kr. | |
| 28 | 1 | STM2574 | Ball bearing | 69,00 kr. | |
| 29 | 1 | STM2675 | Oil pressure switch M3.10/M4.14 | 168,50 kr. | |
| 30 | 1 | STM2646 | Oil pressure switch | ||
| 31 | 1 | STM3425 | Tacho drive |
