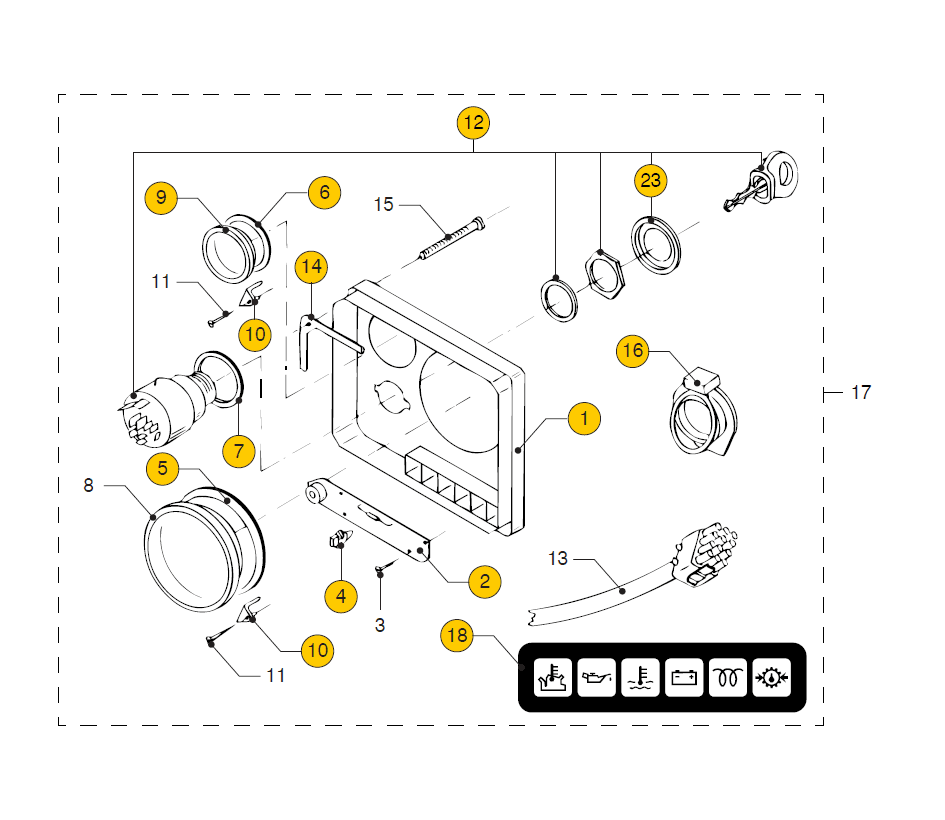

Instrument panel ‘20’ standard 2001 <-Vetus M415 M417
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM9186 | Panel housing MP22 incl. foil | 368,00 kr. | |
| 2 | 1 | STM9168 | P.c.b. compl. p4/Deutz Connected | 437,50 kr. | |
| 3 | 4 | P2295RKP | Screw | ||
| 4 | 6 | STM9169 | Bulb 12V. | ||
| 5 | 1 | STM9170 | Gasket for instrument D 98mm | 32,00 kr. | |
| 6 | 1 | STM9171 | Gasket for instrument D 52mm | 27,50 kr. | |
| 7 | 1 | STM9172 | Gasket for starter switch | 23,00 kr. | |
| 8 | 1 | STM9173 | Blind plate ø98 | ||
| 9 | 1 | PA6493 | Blind plate for engine control panels D 52mm anthracite | 31,50 kr. | |
| 10 | 6 | PA6488 | Mounting bracket for instrument mounting | 30,00 kr. | |
| 11 | 6 | P35164RKP | Screw | ||
| 12 | 1 | STM9215 | Starter-preheat keyswitch with 2 keys | 412,00 kr. | |
| 13 | 1 | STM9164 | Panel wiring | ||
| 14 | 1 | STM6982 | Gasket for engine panel MP20A, MP21A and MP22A | 46,00 kr. | |
| 15 | 4 | P35254ZKP | Screw | ||
| 16 | 1 | STM9188 | Cover for starter switch | 66,50 kr. | |
| 17 | 1 | STM9187 | Panel without instruments | ||
| 18 | 1 | FFMP23 | Front foil for MP21, MP22, MP34, PWL | 90,00 kr. | |
| 23 | 1 | STM9888 | Plastic Cover | 18,50 kr. |
