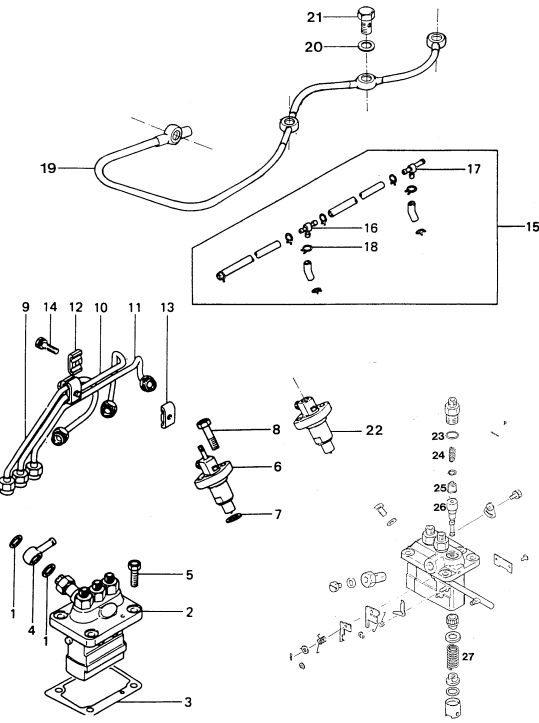

Injectors and pump Vetus M3.10
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 2 | STM9024 | Washer | 12,00 kr. | |
| 2 | 1 | STM2700 | Pump assy fuel | 10.654,00 kr. | |
| 3 | 1 | STM2689 | Shims set | 175,00 kr. | |
| 4 | 1 | STM9262 | Banjo eye 3/8" | 49,50 kr. | |
| 5 | 4 | STM3355 | Bolt M8X20 DIN933 | 14,00 kr. | |
| 6 | 3 | STM2702 | Nozzle holder cpl | 1.289,00 kr. | |
| 7 | 3 | STM2690 | Gasket nozzle holder m3.10 m4.14 | 24,50 kr. | |
| 8 | 6 | STM1651 | Bolt M8X35 DIN933 | 12,00 kr. | |
| 9 | 1 | STM2691 | Pipe assy | ||
| 10 | 1 | STM2692 | Pipe assy | ||
| 11 | 1 | STM2693 | Pipe assy | 229,50 kr. | |
| 12 | 3 | STM2694 | Clamp | ||
| 13 | 3 | STM2695 | Clamp | ||
| 14 | 2 | STM2696 | Bolt | ||
| 15 | 1 | STM2697 | Pipe assy fuel return | ||
| 16 | 1 | STM2698 | Joint | 14,00 kr. | |
| 17 | 1 | STM2699 | Joint fuel return | 45,00 kr. | |
| 18 | 8 | STM2688 | Clamp | 18,50 kr. | |
| 19 | 1 | STM6008 | Leak oil tube M3.10 | ||
| 20 | 6 | STM1007 | Washer 11.5 mm x 8 mm | 14,00 kr. | |
| 21 | 3 | STM2748 | Banjo bolt | 37,00 kr. | |
| 22 | 3 | STM2746 | Injector cpl. M3.10/M4.14 | 1.542,00 kr. | |
| 23 | 3 | STM2779 | O-ring | 54,00 kr. | |
| 24 | 3 | STM2780 | Spring | ||
| 25 | 3 | STM2771 | Delivery valve | 391,00 kr. | |
| 26 | 3 | STM2777 | Element in assembly fuel pump M3.10/M4.14 | 621,50 kr. | |
| 27 | 3 | STM2778 | Spring pump plunger | 64,50 kr. |
