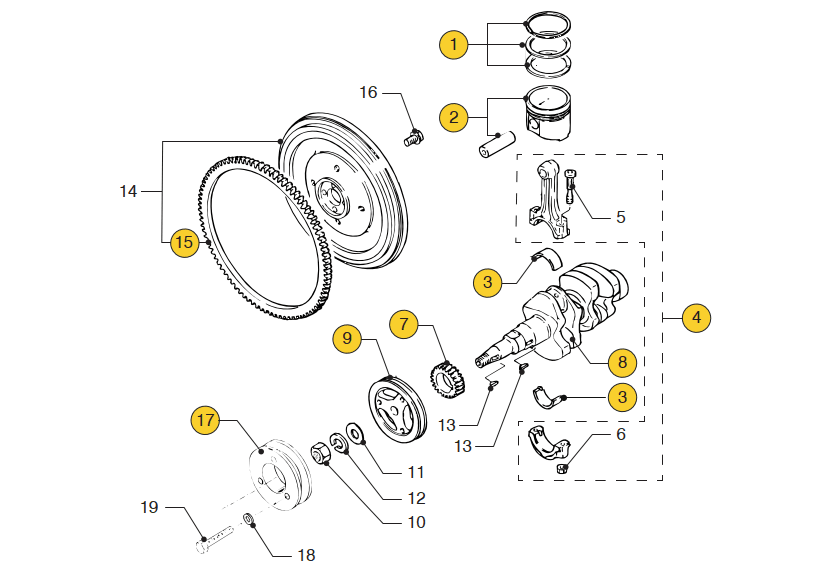

Crankshaft Vetus M2.C5 M2.D5
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 2 | STM1087 | Ring set STD M2.C5/M2.C5 | 690,50 kr. | |
| 1 | 2 | STM1088 | Piston rings 0.25 os M2.C5/M2.D5 | 736,50 kr. | |
| 1 | 2 | STM1089 | Piston rings 0.50 os M2.C5/M2.D5 | 790,50 kr. | |
| 2 | 2 | STM1090 | Piston STD. M2.C5/M2.D5 | 1.226,00 kr. | |
| 2 | 2 | STM1091 | Piston 0.25 os M2.C5/M2.D5 | 1.795,00 kr. | |
| 2 | 2 | STM1092 | Piston 0.50 OS M2.C5/M2.D5 | ||
| 3 | 2 | STM1421 | Conrod bearing shells STD M2.C5/04/06 M3.09 | 233,50 kr. | |
| 3 | 2 | STM1422 | Conrod bearing shells 0.25 os M2.C5/04/06-M3.09 | 233,50 kr. | |
| 3 | 2 | STM1423 | Conrod bearing shells 0.5 os M2/M3 | 242,50 kr. | |
| 4 | 2 | STM1097 | Rod cpl M2.06/M3.09 21mm small end | 1.450,00 kr. | |
| 5 | 4 | STM1177 | Bolt | ||
| 6 | 4 | STM3586 | Nut | ||
| 7 | 1 | STM1179 | Gear | 763,50 kr. | |
| 8 | 1 | STM1180 | Crankshaft M2.04/06/C5/D5 | 11.091,50 kr. | |
| 9 | 1 | STM1181 | Pulley M2 | 736,50 kr. | |
| 10 | 1 | STM1182 | Nut | ||
| 11 | 1 | STM1183 | Washer | ||
| 12 | 1 | STM1184 | Washer | ||
| 13 | 2 | STM1185 | Key | ||
| 14 | 1 | STM1186 | Flywheel M2 | 6.444,00 kr. | |
| 15 | 1 | STM3600 | Gear ring m2.05 | 1.104,50 kr. | |
| 16 | 4 | STM1187 | Bolt | ||
| 17 | 1 | STM1035 | Extra pulley m4.14 | 1.795,00 kr. | |
| 18 | 3 | STM2022 | Washer | ||
| 19 | 3 | STM4013 | Bolt M10x1,25x30 |
