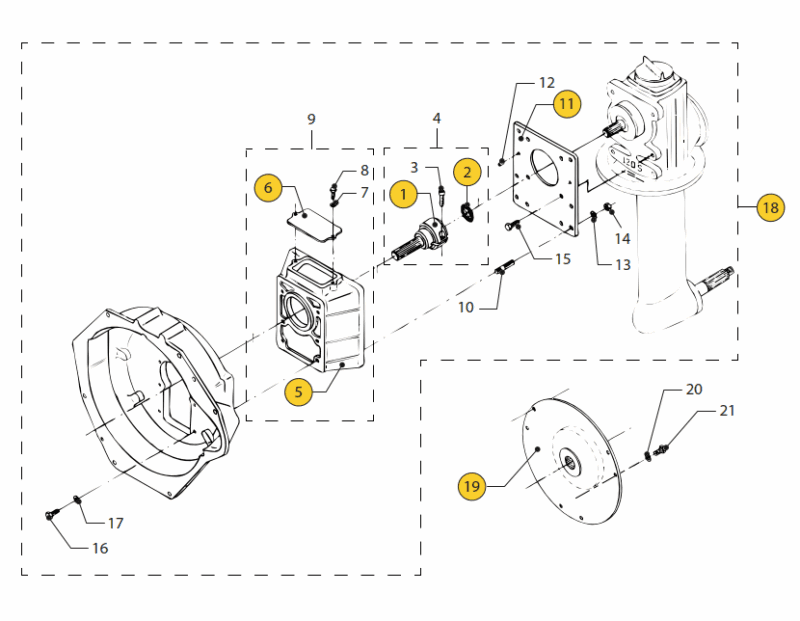

Adaptor kit saildrive 120S Vetus M2.02 M2.04 M2.06 M2.C5 M2.13 M2.18 M2.D5
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM7606 | Coupling 120s-120sb | 2.992,00 kr. | |
| 2 | 1 | STM7608 | O-seal 17x3 | 18,50 kr. | |
| 3 | 2 | STM8332 | Allen screw M8x30 DIN912 | 13,50 kr. | |
| 4 | 1 | STM7616 | Coupling cpl. (1+2+3) | ||
| 5 | 1 | STM7601 | Adapter housing 110s-120s | 1.657,00 kr. | |
| 6 | 1 | STM7603 | Cover | 193,50 kr. | |
| 7 | 2 | STM1025 | Wave washer M6 | 14,00 kr. | |
| 8 | 2 | STM1024 | Bolt | 15,00 kr. | |
| 9 | 1 | STM7612 | Adaptor case cpl. (5+6+7+8) | ||
| 10 | 6 | STM7620 | Stud M10x20 | ||
| 11 | 1 | STM7604 | Adapter flange | 1.519,00 kr. | |
| 12 | 2 | STM2507 | Dowel pin | 18,50 kr. | |
| 13 | 6 | STM2022 | Wave spring washer M10 | ||
| 14 | 6 | STM4018 | Nut | 14,00 kr. | |
| 15 | 6 | STM8391 | BoltM10x25 DIN931 | 13,50 kr. | |
| 16 | 6 | STM1651 | Bolt M8X35 DIN933 | 12,00 kr. | |
| 17 | 6 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 18 | 1 | STM7621 | Adaptor kit for saildr. 120s complete | 7.594,50 kr. | |
| 19 | 1 | STM6106 | Damperplate for TMC or Volvo saildrive 10 teeth spline | 1.473,00 kr. | |
| 20 | 6 | STM1056 | Spring washer M8 | ||
| 21 | 6 | STM4055 | Bolt TAPBOUT 933 ELVZ M8X 16 KB | 13,00 kr. |
