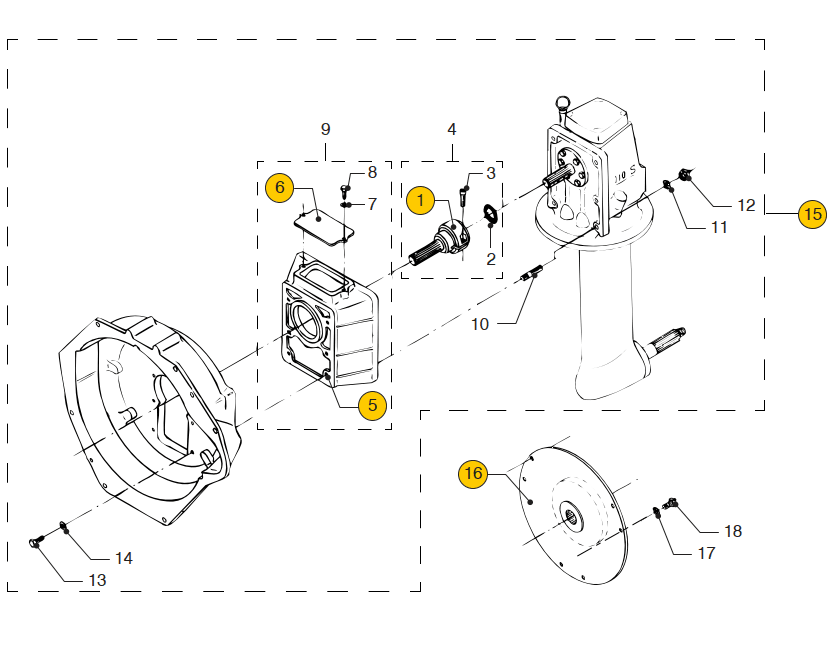

Adaptor kit saildrive 110S Vetus M4.55 M4.56
| pos. | Antal | Reservedelsnummer | Pris | ||
|---|---|---|---|---|---|
| 1 | 1 | STM7605 | Coupling 110s | 2.992,00 kr. | |
| 2 | 1 | STM7607 | O-seal 29.75x3.53 | 12,00 kr. | |
| 3 | 2 | STM8332 | Allen screw M8x30 DIN912 | 13,50 kr. | |
| 4 | 1 | STM7611 | Coupling cpl.(1+2+3) | ||
| 5 | 1 | STM7601 | Adapter housing 110s-120s | 1.657,00 kr. | |
| 6 | 1 | STM7603 | Cover | 193,50 kr. | |
| 7 | 2 | STM1025 | Wave washer M6 | 14,00 kr. | |
| 8 | 2 | STM1024 | Bolt | 15,00 kr. | |
| 9 | 1 | STM7612 | Adaptor case cpl. (5+6+7+8) | ||
| 10 | 6 | STM7615 | Stud M10x45 | ||
| 11 | 6 | STM2022 | Wave spring washer M10 | ||
| 12 | 6 | STM4018 | Nut | 14,00 kr. | |
| 13 | 6 | STM1651 | Bolt M8X35 DIN933 | 12,00 kr. | |
| 14 | 6 | STM1019 | Washer DIN 137 staal mechanisch verzinkt vorm B VEERR-DIN137-B-(MZN)-D8,4 ---> R085Y | 12,00 kr. | |
| 15 | 1 | STM7614 | Adaptor kit saild.110s complete | 5.983,50 kr. | |
| 16 | 1 | STM4104 | Damperplate p4.25 DIN M4.17 | 1.933,00 kr. | |
| 17 | 6 | STM1056 | Spring washer M8 | ||
| 18 | 6 | STM4055 | Bolt TAPBOUT 933 ELVZ M8X 16 KB | 13,00 kr. |
